Bluetooth 5.3 Wi-Fi Module Combo Module

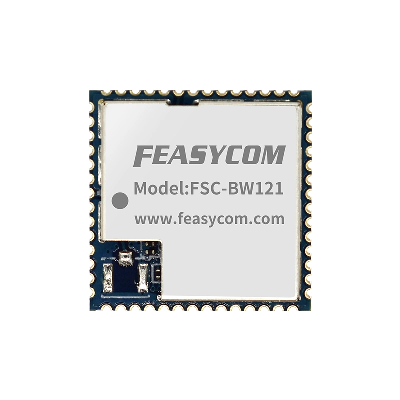

Product Description FSC-BW121 is a Bluetooth WiFi combo module With SDIO Interface, which supports both Bluetooth 5.0 dual mode standard and Wi-Fi 802.11 a/b/g/n/ac standard. It requires external MCU to execute Bluetooth protocol stack.It also supports both 2.4GHz & 5GHz frequencies, SDIO/UART interfaces, LE&BR/EDR, TCP/UDP/HTTP profiles. It provides excellent wireless connection features for audio applications, automotive applications, smart home applications and so on. Detailed Photos Product Parameters Bluetooth Wi-Fi ModuleFSC-BW121Bluetooth versionBluetooth 5.0 dual modeChipsetRealtek RTL8821Dimension17mm × 17 mm × 2.4mmWi-Fi ProtocolsTCP, UDP, HTTPProfilesHFP, A2DP, PBAP, SPP, GATTWi-Fi Standard802.11 a/b/g/n/acFrequency2.4 GHz & 5 GHzOTASupportsInterfaceUART, SDIOPower supply 3.0V~3.6VAntennaExternal antenna requiredHighlightsBluetooth 5.0 Dual Mode, Wi-Fi Dual Bands, Cost-effective Main Features Bluetooth 5.0 Dual ModeCMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11a/b/g/n/ac compatible WLANSupport 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA modeComplete802.11n MIMO solution for 2.4GHz and 5Ghz bandUART, SDIO InterfacesSmall size 17mm x 17mm x 2.4mmCost down solutionSupport WPA3 network securityApplications AutomotiveHome AutomationHome AudioIndustrial ControlOther IoT Applications Company Profile Feasycom is an ISO:9001 and ISO:14001 certified developer and manufacturer of Bluetooth modules, Wi-Fi modules, and beacons. Beacons are the finished products of bluetooth modules. We provide the development, production and one-stop solutions of bluetooth beacons and BLE beacons (Bluetooth tag or sticker) which are used for tracking and location.We can provide the service as below:1. Firmware Development;2. Hardware design;3. Schematics design;4. SDK support;5. APP Support6. PCB Design7. Development Board8. Depth CustomizationWe provide one-stop development solution and production to customer of alert beacon, panic SOS beacon and tracking beacons./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
