Cost-Effective Qca6574A Chipset Wi-Fi Bluetooth 5.0 Dual Mode Module

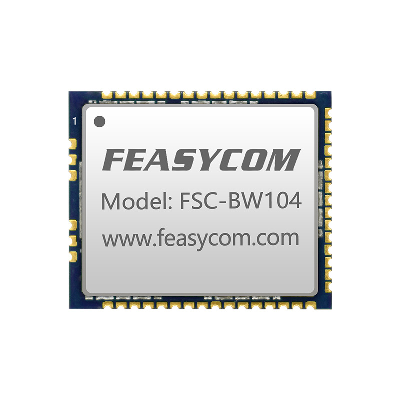

Product Description FSC-BW104 is an automotive-grade, high-performance, cost-effective Wi-Fi Bluetooth module adopts QCA6574A chip, it supports 2 × 2 MIMO, IEEE802.11 a/b/g/n/ac Wi-Fi and Bluetooth 5.0 standard, integrated Wi-Fi and Bluetooth low energy technology.Its small package size is 23.4 x 19.4 x 2.3mm, so designers can have more flexibility in product shape.Detailed Photos Product Parameters Product NameFSC-BW104ChipsetQCA6574AFrequency Band (GHz)2.4/5Multiple-Input Multiple-Output(MIMO)2X2WLAN StandardIEEE 802.11 a/b/g/n/acBT StandardBT5.0+EDRPackageStamp-53Size(mm)23.4*19.4Work Temperature-40°C~+85°CNet weight(g)2gVersionWi-Fi 2.4GHz+5GHz&BT5.0+EDRModulation ModeCCK/BPSK/QPSK/16QAM/64QAM/256QAMEncryptionWPA3/WPA2Operation ModeAP/STA/P2PI/O Interface PCle/SDIO3.0/2.0UART1PCM1Antenna Interface1 X Wi-Fi Dual Band Antenna,1 X Wi-Fi Bluetooth Dual Band AntennaPower Supply1.8V~3.3v(Typ.)Power ConsumptionTBDMain Features  Low costSupport Dual-band Wi-Fi (2.4 GHz/5 GHz) and BT 5.0Support 2 × 2 MUMIMOSupport GATT, DUN, FTP, ANCSSupport HFP, A2DP, AVRCP, PBAP, SPP, IAP2Support Android /Linux SystemRoHS /REACH CompliantApplications Car audio&video systemMeasurement systemsIPTVSTBOTT Company Profile Feasycom focus on the researching and developing of IoT (internet of things) products, including Bluetooth Modules, Wi-Fi and LoRa Modules, Bluetooth Beacon, etc. With more than 10-year experiences in the wireless connectivity, which ensure us have the capability for providing low-risk product development, reducing system integration cost and shortening product customization cycle to thousands of diverse customer worldwide. SDKAPP SupportPCB DesignDevelopment BoardFirmware DevelopmentDepth CustomizationCertification RequestTurn-Key Production Testing & Manufacturing Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location, Lighting and more. Aiming at "Make Communication Easy and Free", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
