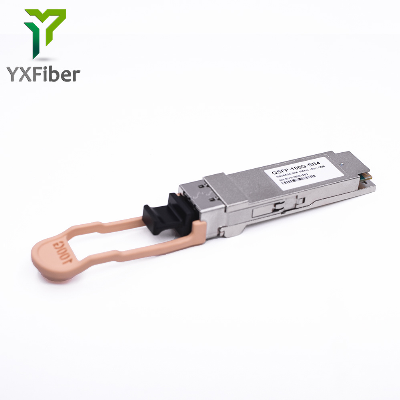

Qsfp28 100g Sr4 100m 850nm MPO Connector

QSFP28 100G SR4 100m 850nm MPO Connector  Part NumberData RateDistanceWavelengthOutput PowerSensitivityRemarkYXF-100G100GbpsMM 100m(OM4)850nm-8.4 ~ +2.4dBm-10.3dBmQSFP28-100G-SR4YXF-100G100GbpsSM 10km1310nm-4.3 ~ +4.5dBm-10.6dBmQSFP28-100G-LR4YXF-100G100GbpsSM 10km1310nm-4.3 ~ +4.5dBm -10.6dBmQSFP28 100G-LR4-EthernetYXF-100G100GbpsSM 40km1310nm-2.9 ~ +4.5dBm -16.9dBmQSFP28 100G-ER4YXF-100G100GbpsSM 2km1310nm-6.5 ~ +2.5dBm -11.5dBmQSFP28 100G-CWDM4  Product DescriptionThe QSFP28-100G-SR4 is a transceiver module designed for 100m optical communication applications. The design is compliant to 100GbASE-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.Features:Up to 27.952 Gbps Data rate per channelMaximum link length of 150m links on OM4 multimode fiberHigh Reliability 850nm VCSEL technologyElectrically hot-pluggableDigital diagnostic SFF-8636 compliantCompliant with QSFP28 MSA Case operating temperature range:0°C to 70°C Power dissipation < 2.0WApplications:100G Ethernet &100GBASE-SR4ITU-T OTU4Functional Diagram:Q&AQ: What kinds of custom choices are offered in YXFiber?A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications. Q: Why should I trust YXFiber compatible transceivers?A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out. Q: Can we use APC connectors on this?A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks  Q: Once I place an order for my transceivers, how long will it take to receive them?A: Normally you can receive the goods within 7 workdays Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
