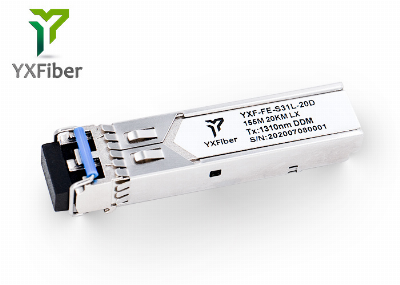

155m Lx Duplex 20km 1310nm LC Sm Ddm SFP Transceivers

  155M Duplex 20km 1310nm LC Connector SFP TransceiversFeatures:•Supports up to 155Mbps bit rates•Duplex LC connector•Hot-pluggable SFP footprint•1310nm FP laser transmitter and PIN photo-detector•Applicable for 20Km SMF connection•Low power consumption, < 0.8W•Digital Diagnostic Monitor Interface •Compliant with SFP MSA and SFF-8472•Very low EMI and excellent ESD protection•Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °CApplications:1.SDH STM-1, S-1.1,L-1.1, L-1.22.SONET OC-3 IR1,LR1,LR23.Other optical transmission systemsProduct Description:YXFiber SFP-155M-120KM Duplex The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.Functional Diagram:More products of us:https://yxfiber-store.en.made-in-china.com/product-list-1.htmlMore about us YXFiber:https://yxfiber-store.en.made-in-china.com/company-Wuhan-Yongxinfeng-Science-Technology-Co-Ltd-.htmlWorld wide areas used our SFPs: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
