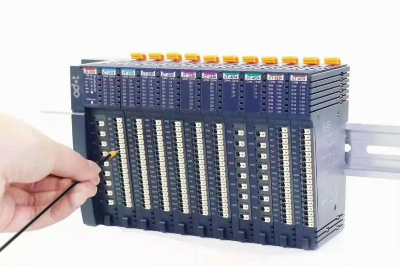

Odot Codesys PLC Compact Io and Extension Universal Remote Io System

Product DescriptionRemote I/O system CN-8032 Network Adapter for Profinet protocol (Bus coupler)The CN-8032 Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports MRP media redundancy, and it could realize ring network redundancy. And it supports RT/IRT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms and IRT synchronous communication minimum period of 250us.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32.Our remote IO model list:CN-8011CN-8011:Modbus-RTU Network adapter,32 slots, the Max. sum of input andoutput is 8192 bytesCN-8012CN-8012:Profibus-DP Network adapter,32 slots, input Max. 244 bytes, outputMax. 244 bytes, the Max. sum of inputand output is 288 bytesCN-8013CN-8013: CC-Link, 32 slots, CC-Link Ver.2, RX/RY Capacity (bit) 896, RWR/RWW Capacity (Word) 128CN-8031CN-8031:Modbus-TCP Network Adapter, 32 slots, input & output max 8192bytesCN-8032CN-8032:Profinet Network Adapter, 32 slots, input & output max 1440bytesCN-8033CN-8033:EtherCAT Network Adapter,32 slots, max. 1024 bytes input,max.1024 bytes outputCN-8034CN-8034:Ethernet/IP Network Adapter, 32 slots, max. 504 bytes input, max. 504 bytes outputCT-121FCT-121F:16 channels digital Intput/24VDC/sink type, PNP,supports countingfunction(Max. counting frequency of 200Hz),the input voltage is 24VDC, the input high level is validCT-222FCT-222F: 16 channels digital Output, source, PNP, 24Vdc/0.5A,the output voltage is 24VDC, the output high level is validCT-122FCT-122F: 16 channels digital input, source, NPN, 24VDC, supports countingfunction(Max. counting frequency of 200Hz),the input voltage is 0V, the input low level is validCT-221FCT-221F:16 channels digital Output/24VDC/0.5A/sink type, NPN,the output voltage is 0V, the output low level is validCT-124HCT-124H: 32 channels digital input, sink or source, 34Pin male connector, 24Vdc, counting function supported (counting frequency up to 200Hz)CT-222HCT-222H: 32 channels digital output, source, 24Vdc/0.5A,34Pin male connectorCT-2228CT-2228:8 channels Digital Output ,source,PNP,24Vdc/0.5A, the output voltage is 24VDC, the output high level is validCT-2718CT-2718:8 channels Relay Output ,( 9~30Vdc@2A,110Vac@0.55A, 250Vac@0.25A)CT-3158CT-3158:8 channels Analog Input,0~5Vdc,-5~5Vdc,0~10Vdc,-10~10Vdc,12 bits,Single-endCT-3238CT-3238:8 channels analog input/ 0& 4-20mA/16-bit,single endedCT-3713CT-3713:3 channels Analog Input,RTD(PT100)CT-3804CT-3804:4 channels Analog Input,Thermocouple( J type, K type, E type, T type, Stype, R type, B type, N type, C type)CT-3808CT-3808:8 channels Analog Input,Thermocouple( J type, K type, E type, T type, Stype, R type, B type, N type, C type)CT-4154CT-4154:4 channels Voltage Output,0~5Vdc,-5~5Vdc,0~10Vdc,-10~10Vdc,12 bits,Single-endCT-4158CT-4158:8 channels Voltage Output,0~5Vdc,-5~5Vdc,0~10Vdc,-10~10Vdc,12 bits,Single-endCT-4234CT-4234:4 channels analog output, 0& 4-20mA/16-bit,single endedCT-5102CT-5102:  2 channels encoder/5V input/Quadrature decoding, direction pulse, high speed counting, 2channels DI, 2channels DO, 2 channels encoder/5V input/Quadrature decoding, direction pulse, high speed counting, 2channels DI, 2channels DO, 2 way 5V output, 32bit, Max input frequency of 1.5MHz2 way 5V output, 32bit, Max input frequency of 1.5MHzCT-5112CT-5112: 2 channels encoder/24V input/Quadrature decoding, direction pulse, high speed counting, 2channels DI, 2channels DO, 2 way 24V output, 32bit, Max input frequency of 1.5MHz.CT-5142CT-5142: 2-channel encoder/differential input/quadrature decoding, direction pulse, high-speed counting, 2-channel DI, 2-channel DO, 32bit, maximum input frequency 10MHzCT-5321CT-5321:serial port communication sub-module (RS232, RS485,RS422, either serial port isoptional, it supports modbus-RTU /ASCII,master or slave mode, transparent transmission mode)CT-5710CT-5710:Fieldbus Extended Master ModuleCT-5720CT-5720:Fieldbus Extended Slave ModuleCT-5800CT-5800:Terminal moduleCT-5810CT-5810:Cover boardCT-623FCT-623F:8 channels / digital input / 24VDC / source or sink type &8 channels / digital output / 24VDC / source  type, single output channel max current 500mACT-7221CT-7221:Expansion power Supply( System power input 24Vdc,Output 5Vdc/2A,Field power input 24Vdc,Output 24Vdc/8A)MTC034MTC034: Din Rail, 32 channels male connector,screw terminal connectionMTE034MTE034: Din Rail, 32 channels male connector,spring terminal connectionDX210-3SFX-2000Length 2 meters, flame retardant material, flexible wire, both ends are female connectorProduct ParametersMax. input is 504 byte Max. output is 504 byteMax. explicit message connection is 10Max. implicit message connection is 5Max. CIP connection is 10Max. Bus length is 100m2*RJ45, 10/100Mbps, self-adaption, full duplexTechnical ParametersSystem Power: Nominal: 24Vdc, Range: 9-36VdcProtection: Overcurrent Protection, Reverse Pro
