Canopen to Modbus TCP Protocol Converter

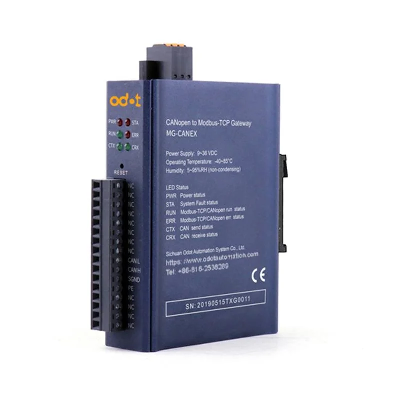

Product DescriptionProduct Name:MG-CANEX Protocol ConverterCANopen to Modbus TCP protocol converterProduct Overview:CANopen to Modbus TCP protocol converterMG-CANEX is a protocol converter from CANopen to Modbus TCP. The device plays as the master in the CANopen network and it could be connected to the standard CANopen slave devices. The data transmission supports PDO, SDO, and error control supports Heartbeat. It Supports synchronous and asynchronous message sending. As a TCP server in Modbus TCP network, the device could be accessed by 5 TCP clients at the same time, and it could be connected to PLC controller and various kinds of configuration software. It could also connect optical transceiver and to realize long-distance data transmission.Function:Gateway is the master of CANopen on CANopen network, and can connect to the equipment of CANopen slaveThe gateway is Modbus Server on Modbus TCP network and supports up to 5 TCP clients access. Double Ethernet port,with switch function, support cascade.Detailed Photos Product Parameters1. 2KV network port isolation protection, 10M/100Mbps rate adaptive, automatic MDI/MDIX reversal.2. It supports address mapping mode, and realize the rapid response to TCP client request.3. Modbus TCP supports function code: 0 x01, 0 x02, 0 x03, 0 x04, 0 x05, 0 x06, 0 x0F, 0 x10.4. 6KB large data buffer, more data transfer volume.5. CAN interface supports CANopen working mode.6. CAN interface Baud rate: 10K~1Mbps.7. CANopen protocol conforms to DS301 V4.02 and supports NMT master, PDO, SDO and Heartbeat.8. It supports one-key reset function to restore factory Settings.9. 35mm DIN-rail installation.10. EMC meets EN 55022:2010 & EN55024:2010 international standards.  ApplicationCompany ProfileFAQQ1. Can you get a free sample?Yes, you will. but we need to charge for samples, we will return sample fee in later order. Q2. Can you get better price? or discount? Yes. we can give you discount. But it is based on quantity. More quantity more attractive price. Q3.OEM, ODM Severice is available? Yes.ODOT company provide OEM/ODM service to our customers. Q4.How about the payment terms? T/T, L/C at sight, western union(30% deposit and 70%T/T . Q5. Can you be responsible for the shipment? We will organize and schedule all shipping to your office if you need. Q6. Lead time? Sample order: 3-6 works days. Bulk order: 7-30 work days after payment. Q7. What is your warranty period? Warranty period is 3 years. This warranty does not cover damage caused by man-made damage, improper care, improper use, negligence,normal wear and tear, and force majeure such as natura disasters, earthquakes, fires, etc.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
