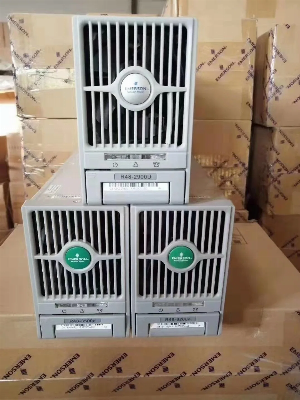

Emerson R48-3200e DC Power Rectifier Module

EMERSON R48-3200e RECTIFIER MODULE  Product description:  1, the efficiency is as high as 96.8%. 2, power factor 0.998; 3. Input grid frequency: 45 ~ 65Hz; 4. Working temperature range: -40 ~ +65 C; 5, rated output power: 3200W, power density as high as 0.813 W/cm3; 6, safety regulations: EN60950: 1992, UL1950; 7, EMC: EN55022 Class B; 8, hot swap non destructive; 9, rectifier module MTBF>57 hours.   Product features:  * Emerson's high-efficiency rectifier module R48-3200e adopts non-destructive hot-swapping technology, and its output and input have soft-start units, so the output voltage of the system will not fluctuate when the module is swapped. * working temperature: -40°C~70°C * altitude: less than 2000m (2000m with upper power). * output power: 3200W (input voltage 200Vac~250Vac). * input voltage range: 85Vac~300Vac (single phase three wire system). * rated input voltage: 200Vac~250Vac * maximum static voltage without working time: 415Vac * input current:
