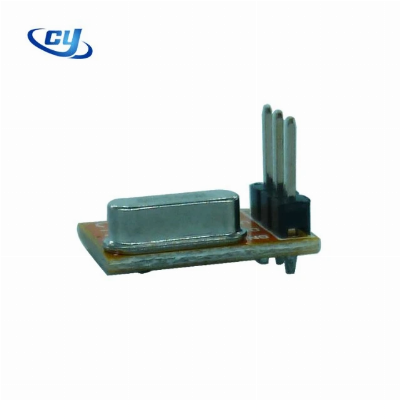

Description:CYT5-V3.0 is a ASK radio transmitter module. This module is a superior performance transmitter module for ISM band. With the adoption of European brand RF wireless data transferring/ receiver chipsets, it has advantage at strong transmission power, low voltage power supplying, easily through the Fcc/CE authentication. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.Features:High output power: 14dBm;Low operation voltage: VCC= 1.8 to 3.6 V;Frequency: 315MHz/433.92MHz;Frequency tolerance: ±50 KHz;The range can be up to 300m in open space when matching with CY11;Operating temperature: -20ºC~+70ºC ( It can custom to -40ºC ~ 85ºC upon requests);The Static power consumption is low. Emission current consumption: 8mA (315Mhz/433.92Mhz). There is no current consumption if there is no data launch;Frequency tolerance: ±30 KHz;Bit rate: 2.4KB/S;Circuit Shape: PLL(±50KHz);Dimension: 11.5*16*5.5mmApplicationRemote gate controls. BarriersRemote keyless entry (RKE)Car alarm systemsWireless security systemsAutomation systemsRemote control systemsRemote Curtain MotorPin DescriptionPlease note: CYT5 is come with standard three Vertical PINs as the picture showed in the right hand side (without the ANT pin). Please notify us if you would like 4 PINs or horizontal pin type. PinNameFunction1GND Ground2DATAData connected to MCU3VDDPositive Power Supply4ANTAntenna InElectrical Characteristics:CYT5-V3.0 VDD-GDN 1.8V-3.6V TA-25°CCharacteristicsSymbolConditionValueUnitMin.Typ.Max.FrequencyFc 315433.92 MHzModulation Mode ASK Output power 3.6V/50Ω 14 dBmData-rate 2.4 KbpsFrequency TolerateFc ±50 KHzCurrentIRC 8 mAWorking VoltageVCC 1.83.33.6VWorking TemperatureTC -20 +70ºCMechanical Size: (Unit: MM) /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
