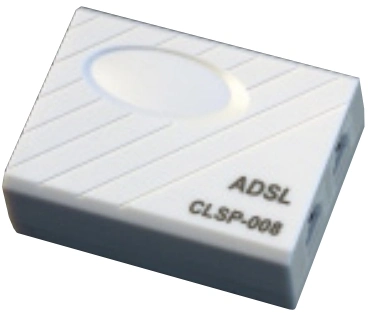

Brief introduction CLSP-008 is an ADSL2+ over POTS splitter. It separates line signal from subscriber side into voice signal for telephone and ADSL signal for ADSL modem. CLSP-008 has been designed for indoor application with three RJ11 sockets (LINE, MODEM, PHONE). Splitter Performances Test item Condition/Requirement Impedance 600Ω DC Current 100mA DC series resistance ≥25Ω Insertion loss/distortion 1KHz≤0.3dB a(0.2-4KHz)-a(1KHz) ≤0.3dB Return loss 0.2-2.0kHz ≥18.0dB 2.0-3.4kHz ≥14.0dB Stop band attenuation 30-300KHz≥65.0dB 300-2208KHz≥55.0dB Unbalance attenuation 0.2-1KHz≥60.0dB 1-3KHz≥55.50dB Group runtime distortion 0.2-4.0KHz≤150.0uS Complied Standards ITU-T G.992.1 RoHS compliant YD/T 1187-2006 Interface DefinitionFunction Type Tip Ring Line RJ11 Pin4 Pin3 ATU-R Modem RJ11 Pin4 Pin3 Phone RJ11 Pin4 Pin3 Circuit DiagramOutline Dimensions /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
