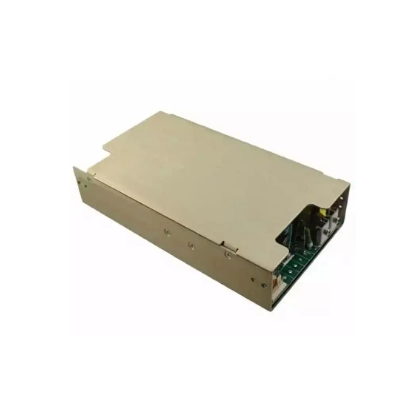

Td&K-Lambda Convection- & Conduction-Cooled Power Supply

Basic InformationTDK-Lambda Convection- & Conduction-Cooled Power SuppliesTDK-Lambda convection- and conduction-cooled power supplies are a broad selection of devices ideally suited for applications that do not rely on fans for cooling. By eliminating fans, these TDK-Lambda power supplies reduce audible noise and required maintenance while providing increased system reliability.  FEATURES1.Convection-cooled features2.Universal AC input3.High efficiency4.High convection ratings5.Medical and ITE safety certifications6.Conduction-cooled features7.High efficiency8.High base plate operating temperature9.I2C Interface (some models)10.Protective PCB Coating (some models)11.Parallel operationAPPLICATIONSIndustrialMedical (Convection)Commercial-off-the-shelf (COTS)Test and MeasurementLEDsCommunicationBroadcast  ModelCUS100MB-24/ASales RegionWorldwide (except Japan)SeriesCUS-MModelCUS100MBFeature2MOPPMedical certificationOptionsWith coverBrandTDK-LambdaElectrical CharacteristicsInputSingle-phaseInput Voltage Range[AC]85 to 265VacEfficiency90% Typ.Rated Output Voltage[DC]24VdcOutput Voltage Range[DC]21.6 to 26.4VdcMaximum Output Current3.4AMaximum Output Power81.6WPackage Type and SizePackage / MountingEnclosed / Unit typeIndustry Standard SizeWidth(W)125mm Nom. (4.92in Nom.)Height(H)36mm Nom. (1.42in Nom.)Depth(D)63.1mm Nom. (2.48in Nom.)Weight260g Typ. (0.6lbs Typ.)Other Operating Temp. Range-20 to 70°CCoolingForced airConvectionSafety Standard(Certified)IEC60601-1 2nd Edition and 3rd EditionEN60601-1 3rd EditionES60601-1 3rd EditionIEC60950-1UL60950-1IEC62368-1EN62368-1UL62368-1More Optional ModelsACS40US03Modular power supplyACS40US05Modular power supplyACS40US09Modular power supplyACS40US12Modular power supplyACS40US15Modular power supplyACS40US24Modular power supplyACS40US48Modular power supplyACS60US09Modular power supplyACS60US12Modular power supplyACS60US15Modular power supplyACS60US24Modular power supplyCUS100MB-24/AModular power supply Models 1kWModelVoltage (V)Current(A)Power(W)G10-1000-10V0-1001000G20-500-20V0-501000G30-340-30V0-341020G40-250-40V0-251000G60-170-60V0-171020G80-12.50-80V0-12.51000G100-100-100V0-101000G150-70-150V0-71050G300-3.50-300V0-3.51050G600-1.70-600V0-1.71020Models 1.7kWModelVoltage (V)Current(A)Power(W)G10-1700-10V0-1701700G20-850-20V0-851700G30-560-30V0-561680G40-420-40V0-421680G60-280-60V0-281680G80-210-80V0-211680G100-170-100V0-171700G150-11.20-150V0-11.21680G300-5.60-300V0-5.61680G600-2.80-600V0-2.81680   Product PicturesPacking & Delivery   1 piece in paper box   Company Profile     Wuhan Unique Mechanical and Electrical Equipment Co.,Ltd, base in Wuhan, China and have warehouse in Shenzhen and Shanghai, and agent in HongKong. We engaged to 5G network base designation and construction since the year of 2011, after more than 10 year experience in 5G and 3G broadcast base equipment and materials suppling, we now had build a mature supplying system for BTS base DC power supply System, along with the SMPS rectifier modules, BTS cabinets, BTS room including Air-conditioning, Feeder window, Cable ladder, Grounding. Besides the indoor equipment, we also experienced in Feeder cable, Feeder Jumpers, Feeder clamps, waterproofing kit and grounding kits. Besides the BTS materials, the fiber cable and accessories like outdoor/indoor fiber cable, patch cord, CPRI cable, testers and splicing machines and enclusures are also our main field. During our development, we have build good relationship with some famous brand in Rectifier field like Vertiv/Emerson, Delta/Eltek, Eaton, Huawei, ZTE, YOFC,Hengxin, EXFO etc, we warmly welcome your inquiries if there is anything related to the telecommunication and will serve you with our skills and experience. Our PartnersFAQ 1. Who are we?We are based in Hubei, China, start from 2017,sell to Eastern Europe(20.00%),Mid East(20.00%),Africa(20.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),North America(10.00%). There are total about 1-4 people in our office. 2. How can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us?Rectifier Module,DC Power System,SMPS,Fiber Cable,Feeder Cable 4. Why should you buy from us not from other suppliers?Thanks to more than 10 years dealing with 5G telecom site power supply system, our company are now have mature experience for the main brands in this field. Knowing and have stock for many rectifier modules and DC power systems like Vertiv,Delta,huawei... 5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,Credit Card; Language Spoken:English,Chinese,Spanish,Russian   For a sincere quotation, please provide self-introduction, product name, brand, model and quantity.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(funct
