Coaxial Cable to Ethernet Converter Digital TV and Internet IPTV Eoc Slaves

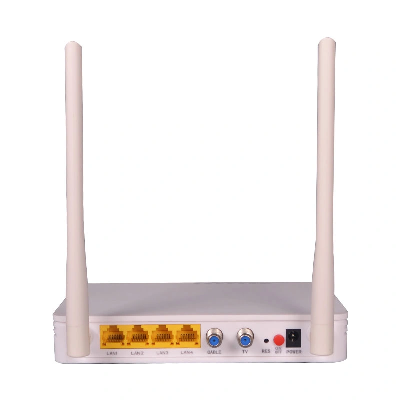

Four Ethernet  Ports Cable ModemEOC Slave with WiFi Product DescriptionSummaryEOS-204W is the EOC slave based on the HomePlug AV solution for Ethernet access over coax.  It works together with EOC master which is based on the HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.EOS-204W is the slave with 4 Ethernet ports and WIFIEOS-204W is based on the Qualcomm chipset solution, with high anti-jamming capability OFDM technology. The 7.5-65MHz low-frequency band is used for EOC signals. Built-in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.EOS-204W is the EOC slave based on the HomePlug AV solution for Ethernet access over coax.  It works together with EOC master which is based on the HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking. Features1. Based on HomePlug AV solution and Qualcomm chipset2. 7.5-65Mhz frequency for EOC signals., no influence on CATV Service3. PHY Layer speed 600Mbps4. Support data encryption5. 4 100M auto-negotiation Ethernet port6. Support the isolation of slave under one master7. Support Port-based VLAN and 802.1q VLAN8. Support bandwidth-limited9. Support QOS configuration based on the slave port or VLAN.10. Support broadcast storm control.11. Support data packages count12. Automatically distribute configurations to newly connected slaves, available to use as soon as correctly connected and power on.13. Support WEB, CLI, and SNMP management14. Support on-line upgradingDetailed PhotosProduct ParametersSpecificationItemParametersEOS-204WInterface & indicatorRF interface1*TV(RF signal) OUTPUT, metric F connector1*CABLE(MIX)INPUT, metric F connectorEthernet interface4*10/100M auto-negotiation, RJ45Power interface1*DC12V power supply interfaceLED indicators1 x power indicator1 x system indicator1 x CABLE indicator1 x WIFI indicatorLAN indicator(each Ethernet port has 1 indicator)Performance  parametersRF parametersFrequency:7.5-65MHzOutput level:110±5dBuv Receive sensibility:45dBuvReturn loss:>15dBOutput impedance:75ΩTransmissionPHY Layer:600MbpsThroughput on MAC Layer:320MbpsModulation ModeOFDM- 2690-carriers4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBOWorking ModeTDMA/CSMAEncryption ModeAES-128StandardEOC StandardIEEE P1901(Draft)HomePlug AVEthernet StandardIEEE 802.3, IEEE 802.3x, IEEE 802.3uIEEE802.1P, IEEE802.1QSoftwareNetwork ManagementWEB, CLI, SNMPSoftware FeaturesVLAN, QoS, Bandwidth Control, Broadcast storm limitationPhysical FeaturesPower supply & ConsumptionPower adapter:12VDC 1APower consumption:
