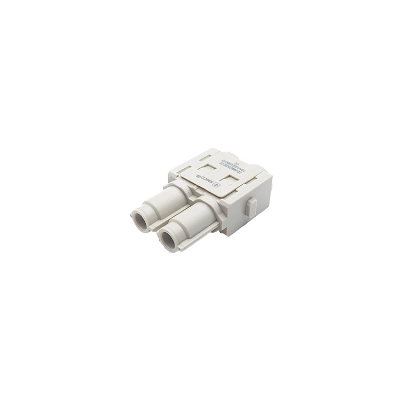

09140023141 Hmk70-002-FC Female 70A Modular Industrial Plug Socket

Cable entry protection:1. Universal cable glands2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices3. Cable gland with normal or multiple seal4. Extensive range of accessoriesHoods:1. low or high construction2. Top or side cable entry .1 or 2 locking leversMale insert with:1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminalFemale insert with:1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminalHousing:1. Housing(bulkhead mounting) with or without thermoplastic or metal covers,1 or 2 locking levers2. Housing(surface mounting) low or high construction with or without thermoplastic or metal covers,1 or 2 locking levers,1 or 2cable entries3. Hood(cable to cable) low or high construction for cable to cable connectionsAccessories:1. Protective covers available2. Code and guide pins for coding3. Special insert fixing screws for use without hoods and housings4. Label according to CSA-approvalCharacteristicsThe H-Modular series is designed for combining different transmission media in one connector. The multifaceted system of inserts,contacts, frames, hoods and housing fulfils individual customer requirements. To continuously enable new configurations, theH-Modular series growths constantly.More than 50 different modules for different transmission media are available. These cover various termination techniques. Thepatented H-Modular hinged frame enables the configuration of all modules in the well-accepted H hoods and housing size 6B-24B.Further additional solutions are available, e.g. suitable docking frames for drawer units.Individual customer requirements can be realized. Combining various transmission media in one single connector results in lowerexpenditures in installation time and production downtime. Space savings and cost saving are further benefits. The easy extensionpossibilities secure a further safe designInsert Number of contacts 2 Electrical data acc. to EN 61 984   ---Rated current 70A ---Rated voltage conductor 1000V ---Rated impulse voltage 8kV ---Pollution degree 3     Rated voltage acc. to UL/CSA 600V Insulation resistance ≥1010Ω Material polycarbonate Limiting temperatures -40ºC...+125ºC Flammability acc. to UL 94 V0 Mechanical working life(mating cycles) ≥500 Characteristics:Two levers at the bottom part of the housing* Secure locking ensured by four locking points* Minimal space requirements and high locking force* Ideal for laterally arranged connectorsTwo levers on the hood* Secure locking ensured by four locking points* Minimal space requirements and high locking forces* Ideal for laterally arranged connectors and surface-mounted housings with capsOne lever at the bottom part of the housing* Two locking points along the longitudinal axis* Easy to access even with cable entering laterally* Cap on the upper part of the housing can be lockedHood&Housing Material aluminium die-cast Colour Grey Locking element   ---Lever type metal elastic pressing ---Material Stainless steel Hoods/Housing sealing NBR Limiting temperatures -40ºC...+125ºC Flammability acc.to UL 94 V0 Degree of protection acc.to EN 60529 for coupled connector IP65 Cable gland   Metal cable gland Plastic cable gland Hose cable gland Material: Nickel-plated brass Nylon Nylon Seal Material NBR NBR   Degree of protection IP68 IP68 IP54 Temperature range Stat:-40ºC-100ºC Dyn:-20ºC-80ºC Stat:-40ºC-100ºC Dyn:-20ºC-80ºC -40ºC-+150ºC Zhejiang Smico Electrical Technology Co.,Ltd is a company specializing in heavy duty connector Research,production and salesas one integrated high-tech enterprises,with many years of professionaland technical strength and long-term development goals.In the company"to the quality ofsurvival,to the credibility of development"and absorbing the international advanced technologyand design concept,is committed to providing high quality products and the best service,make the products on the market canbe a leading position.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
