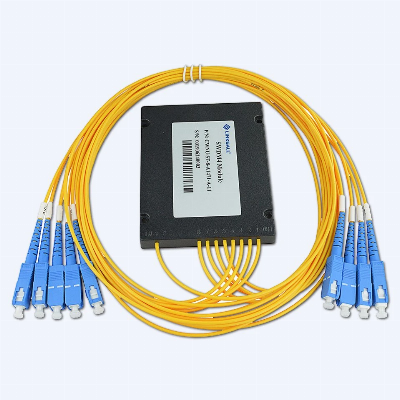

Multimode 1310/1550nm Filter FTTH Wdm

CWDM SWDM9 multiplexier moduleProduct OverviewCoarse Wavelength Division Multiplexing, 20nm Channel Space, with 5% Bi-Direction Monitor Single Fiber 9 Channels Bi-Direction, 18 Wavelengths, 1RU 19" rack mount chassis, 2 slotsFeatures  Cost-effective CWDM technologyTerminates sixteen wavelengthsReliable passive thin film filter WDM optical technologyLow optical insertion lossLow-profile modular designApplications  Metro NetworkAccess NetworkFTTH ApplicationUnidirectional network traffic rings Point-to-point applicationsCATV Fiberoptic LinksPerformance Specification  ParameterUnitThin Film Coarse WDMChannel spacingnm20Number of Channelsch18Central Wavelengthnm1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611Operation WavelengthnmITU±6.5Ripple in PassbanddB≤ 0.4Power Monitor Rate%5Channel Insertion Loss (with connector)dB≤ 4.8End To End Insertion Loss (with connector)dB≤ 7.0Mux/Demux pair Insertion Loss uniformitydB≤ 2.5Insertion Loss for Monitoring PortdB≥ 10 and ≤ 21.5IsolationAdjacent channeldB≥ 30Non-adjacent channeldB≥ 40Polarization Dependent LossdB≤ 0.15Polarization Mode dispersionps≤ 0.20Return Loss (with connector)dB≥ 45DirectivitydB≥ 50Insertion Loss Temperature StabilitydB/°C≤ 0.005Temperature Wavelength Driftnm/°C≤ 0.002Recommend Operation EnvironmentPower HandlingmW≤ 500Tensile LoadN5Operating Temperature°C0 ~ 70Storage Temperature°C-40 ~ 85Relative Humidity%95Package SpecificationFiber Type Corning SMF-28e        Connector TypeCOMSC/UPCMONFC/UPCCWDM channelsLC/UPC                                                                                         /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
