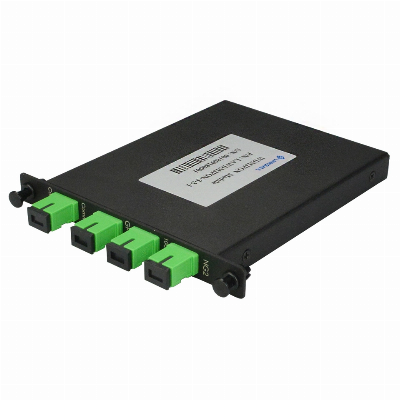

1260nm-1650nm Pon Wdm for EDFA

NGPON3 WDM1. PRODUCT DESCRIPTION3 ports WDM, edge filter, NGPON2 WDM filter, reflection band: 1524nm~1544nm, pass band: 1593nm~1603nm, combine/split wavelengths , low insertion loss, high isolation2. FEATURESLow insertion lossLow polarization dependent lossHigh IsolationHigh durability3. OPTICAL SPECIFICATION  No.ParameterUnitSpecification3.1Operating Wavelengthnm1520~16203.2Port numberCH33.3Reflect Band Wavelength rangenm1524~15443.4Pass band wavelength rangenm1593~16033.5Insertion Loss(COM to Pass port, with connector)dB≤1.03.6Insertion Loss(COM to Reflection port, with connector)dB≤1.03.7RippledB≤0.53.8Isolation@pass portdB≥303.9Isolation@reflection portdB≥153.10Insertion Loss Thermal StabilitydB/ºC≤0.0063.11Wavelength Thermal Stabilitynm/ºC≤0.0023.12Return loss(with connector)dB≥503.13DirectivitydB≥553.14PDLdB≤0.253.15PMDPS≤0.153.16Power HandlingmW300  4.ABSOLUTE MAXIMUM RATINGSNO.ParameterSpecificationUNITSRemark4.1Operating Temperature-5 ~ +70°C 4.2Storage Temperature-40 ~ +85°C 4.3Operating Humidity5 ~ 95%RH 4.4Tensile strength>5N 5. PIGTAIL AND CONNECTOR  NO.ParameterSpecificationRemark5.1Fiber TypeG657A1 or equivalent , 2.0mm cableOr customer specify5.2Connector TypeCOM port: SC/APCPass port: SC/APCReflect port: SC/APCOr customer specify6. PACKAGE DIMENSION  NO.ParameterSpecificationRemark6.1Package (mm)ABS box 90x20x10Or customer specify                                                                                         /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
