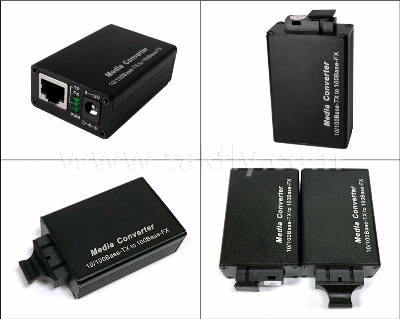

Mini 10/100base SFP Port Fiber Optic Media Converter/Transmitter

Mini 10/100/1000Base Fiber Optic Media Converter           Key Features:-10/100/1000Base-TX UTP to 1000Base-FX fiber media converter- Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards-Choice of SC, LC, BiDi or other connectors for Multi mode and single mode- DIP switch to set different configurations- Compact package sizeThe mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc. A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the different operating mode (Force FX to 100M, pass through mode, etc).Technical Specifications:1. Data Rates:  10/100/1000 Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx)- 1000 Mbps (1000Base-FX) or 100 Mbps (100Base-FX)2. Input Power Requirements:Input voltageDC 5-12VPower consume3 Watts maximum3. Environmental Conditions:Operating temperature0ºC to 50ºCCoolingfree air convectionStorage temperature-20ºC to +85ºCOperating Humidity90% max, non-condensing4. Mechanical Specifications:Case MaterialIronCase ColorBlackNet Weight150g approx. / unitDimensions60 (W) x 20 (H) x 90 (L) (mm)Warranty2 years hardware warrantyCertification:Takfly Wroldwide ExhibitionThanks for refer our products, should any question please feel free to contact me.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
