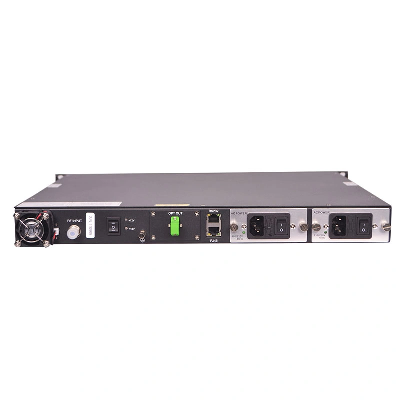

10dBm 1550nm Fiber Optic Transmitter

10dbm 1550nm fiber optic transmitterSummary1550nm Internal Modulation Optical Transmitter has been widely used in the applications of the multi- channel transmission. When the laser's chirp effect is reacting to the link dispersion of the fiber, there will be distortion on the receivers. While working with the EDFA, there will be serious CSO deterioration. The distortion and deterioration will increase with the distance getting longer and channels getting more. This series of 1550nm internal modulation CATV optical transmitter has chirp and dispersion compensation inside, which makes the system index perform excellently. It can be used as a transition solution, such as a town where the fund is in shortage and the area coverage is less than 10Km. CharacteristicLaser OMI AGC/MGC Dual power supply inside backup.Low chirp effect, high linearity DFB laserIntuitional modulation status displayDual Module therefore drive, chirp compensationFull-automatically swicthFull-automatically control of casing temperatureParameters PerformanceIndexSupplementOptic featureLaser wavelengthnm1550±10 Linearity widthMHz≤1λEquivalent noise intensitydB/Hz≤-160RIN 20~1000MHzSide mode suppression ratiodB≥35SMSRExtinction ratiodB≥20XpOutput powerdBm2×71×7,1×10,2×6,2×7SBS restraindBm≥17 Return lossdB≥60 Optic fiber connector FC/APCSC/APC or E-2000RF featureWork bandwidthMHz45-862 Input leveldBmV18~28AGCFlatnessdB≤±0.7545~862MHzReturn lossdB>1645~750MHzInput impedanceΩ75 Link featureTransmit channel PAL-D/60ch CNRdB≥5110Km optic fiber,0dBm receiveCTBdB≤-65 CSOdB≤-60  General featureNetwork interface port RJ45,R232Support I.E. & SNMPPower supplyV90~265 city power-48VDC optionalPower ConsumeW≤50Single power worksWork temp.°C-5~65Machine temp controlled automaticallyStorage temp.°C-40~85 Work relative temp.%5~95 Size"19×10×1.75WxDxHCompany informationShipping & PackageCustomer feedback FAQ1. What are the payment terms that you support? Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you. 2. What about the lead time? Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends. 3. How about the shipping? When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment. 4. How can I place an order? (1) Negotiation is agreed upon for the product price and specifications. (2) The Proforma invoice will be sent for confirmation. (3) After the agreement on the proforma invoice, the customer makes the deposit. (4) Manufacturing will be started as soon as the payment is confirmed by our bank. (5) Ship out the goods within the agreed delivery deadline. 5. Can you do OEM for us? Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you. 6. How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
