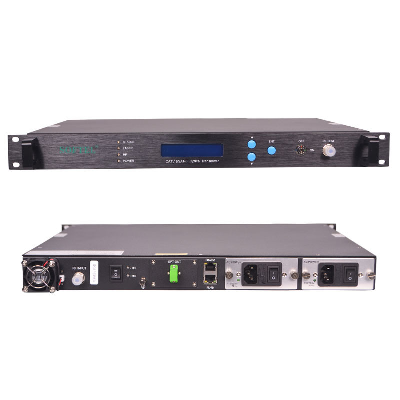

1550nm Fiber Optic Transmitters Optical CATV Transmitter Internal Optical Transmitter CATV 1550nm

 Product Description The transmitting modules of this machine adopt the imported DFB laser named SEI and so on.The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.The RS-232 standard connector makes it is possible to manage on line and monitor in another place.The machine adopts 19"standard shelf and it can work with the voltage from 110V to 254V.Features•High performance: Externally modulated technology, no laser chirp, low dispersion distortion, high extinction ratio, with excellent characteristic within 40~862MHz.•Narrow bandwidth (0.65MHz), lower noise, DFB continuous-wave laser, is propitious to reduce the influence of the dispersion.•The operating bandwidth is up to 47~862MHz (47~1080MHz).•CNR ≥ 53dB and excellent CTB, CSO index.•SBS: 13~18dBm adjustable.•ITU standard wavelength, ±200GHz (±1.6nm) adjustable.•AGC/MGC mode is optional at the spot. OMI can be optimized at the spot.•Perfect RS232 communication interface.•Advanced SNMP network management function.•1+1 power supply backup, switch automatically.•Casing temperature auto-control.•Excellent P/P ratio. Applications•Used in main links and distribution network links in large and middle CATV station head-end. Analog-digital hybrid transmission >200Km (with dispersion compensation). Pure digital transmission (without dispersion compensation) >400Km, (with dispersion compensation) >700Km. •ST1550EU ITU wavelength adjustable, applicable to the value-added service of DWDM fiber optic CATV system and CFG dispersion compensation system.•It can be used in branch FTTH that has high system index demand. Point to Point>65Km, CSO ≤ -65dB. It can provide highly qualified and reliable value-added service such as RFTV, IPTV, and VOD for the secondary users. It can also avoid the limitation of CSO deterioration and transmission distance caused by laser chirp for adopting a 1550nm direct modulated optical transmitter.Product ParametersModel  (ST1550I)-04-06-10-12Optic Power     (mW)461012Optic Power     (dBm)6.08.010.010.8Optic Wavelengt  (nm)1550±20Fiber ConnectorFC/APC,SC/APC,SC/UPC (Selected by the Customer)Working Bandwidth (MHz)47~862Channels 59CNR           (dB)≥51CTB           (dB)≥65CSO           (dB)≥-60RF Input Level   (dBμV)Not with pre-distortion78±5 With pre-distortion83±5Band Unflatness≤0.75Power Loss       (W)≤30Power Voltage     (V)220V(110~254) OR -48VDCWorking Tem      (ºC)-20~85Size      (mm)483×370×44Packaging & ShippingCompany Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
