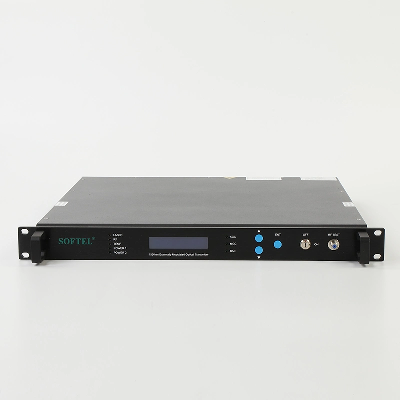

Dual Power Supply 10km Optic Fiber External 1550nm Transmitter

When ST15Ixx is applied in the multi-channel transmission, the laser's chirp effect will react with the link dispersion of the fiber. There will be distortion othe receiver. If working with the EDFA, there will be serious CSO deterioration. The distortion and deterioration will increase with the longer distance and more channels. 1550nm internal modulation CATV optic transmitter, has the chirp and dispersion compensation inside, and imthe system index greatly. It can be used in the town where the fund is shortage and the distance is less than 10Km as a transition solution. Feature Low chirp effect, high linearity DFB laser Dual Module therefore drive, chirp compensation Laser OMI AGC/MGC Intuitional modulation status display Dual power supply inside backup. Full-automatically swicth Full-automatically control of casing temperature   Parameter   erformanceIndexSupplementOptic featureOperating wavelength(nm)1540~1563 ITU-TG.692 Wavelength adjustable range(nm)±1.6 (±200GHz) Wavelength adjustable mode ±0.05nm stepping Linewidth(MHz)≤1FWHM(Δλ)Side mode suppression ratio(dB)≥45SMSREquivalent noise intensity(dB/Hz)≤-160RIN (20~1000MHz)Output power(dBm)1×5Optional 1×3, 1×6, 1×7Return loss(dB)≥55 optical fiber connector SC/APCOptional FC/APC,LC/APCRF featureWork bandwidth(MHz)47-86247~1000, 47~1080 optionalInput level(dBmV)18~28AGCFlatness(dB)≤±0.7545~862MHz  ≤±1.5862~1000MHz (optional)Return loss(dB)>16 Input impedance(Ω)75 RF port F-Female Link featureTransmit channel PAL-D/60CHPAL-D/99CH CNR1(dB)≥52≥50.5Back to backCNR2(dB)≥50.5≥4950Km optical fiber, 0dBm receiveCTB(dB)≤-65≤-65 CSO(dB)≤-65≤-65 SBS restrain(dBm)13 General featureSNMP network management interface RJ45 Communication interface RS232 Power supply(VAC)90~26550/60Hz(VDC)-4830~72Power Consume(W)≤50Single power worksOperating temp.(°C)0~50Machine temp. control automaticallyStorage temp.(°C)-40~85 Operating relative humidity(%)5~95 Size(")19×14.5×1.75 (W)x(D)x(H)   PARAMETERS FOR 2 OUTPORT PerformanceIndexWavelength ADJ. Range(nm)±1.6 (±200GHz)Wavelength ADJ. Mode ±0.05nm steppingSide mode suppression ratio(dB)≥45Equivalent noise intensity(dB/Hz)≤-160Input level(dBmV)18~28Input impedance(Ω)75RF connector F-FemaleSNMP NM interface RJ45Communication interface RS232Linewidth(MHz)Typ.=0.65Output power(dBm)2*3,2*5, 2*6, 2*7, 2*9, 2*10, 2*11 optionalReturn loss(dB)≥50Link featureTransmit channel PAL-D/60CHCNR1(dB)≥53CNR2(dB)≥51.5CTB(dB)≤-65CSO(dB)≤-65Transmit channel PAL-D/99CHCNR1(dB)≥51.5CNR2(dB)≥49.5CTB(dB)≤-65CSO(dB)≤-65SBS restrain adjustable(dBm)13~18Optical fiber connector SC/APC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
