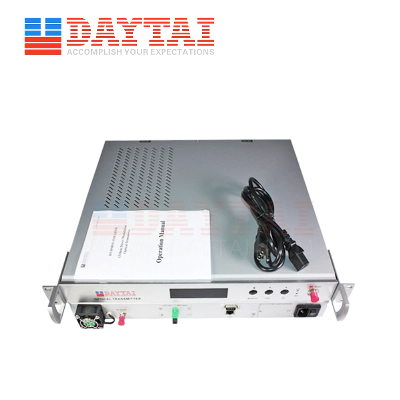

Fiber Optic CATV 1310nm Optical Transmitter with AGC

CATV 1310nm Optical Transmitter Description: 1. Wavelength(nm):1310±10 2.Output power(nw):4~24 3.Return Loss(dB): ≥ 55 4.Work Bandwidth(MHz):45-862 5. Optical Fiber Connector:SC/APC 6. RF Interface:F Type 7.Work Temperature(°C):-5~65 8. Size:483*360*44(mm) 9. MOQ:1 pc 10.Delivery time:7~15 days,correct time according to your quantity 11.Fob Port: Ningbo,shanghai CATV 1310nm Optical Transmitter Features: 1. Dual module RF driver, highefficiency laser pre-distortion adjustment. 2. Full-automatic OMI control, AGC &MGC: Under AGC status, inputlevel is between 78~88dBuV,and system index is optimum. Under MGC status, input range can be adjusted between 75~90dBuV by theATT on front panel. 3. Built-in dual backup powersupplies; switch full-automatically. One is working, with the other as coolbackup (suggested). Both are working at the same time, withone as hot backup. If one is damaged, it will switch to the otherfull-automatically. Switch time≤10us. 4. DualRF input port: 1). AMinterface: Input 59routes PAL-D(47-550MHz). 2). Digitalinterface(-10dB): Input digitalvideo(550-750MHz). CATV 1310nm Optical Transmitter Product Performance   PerformancePerformanceRemarkOptic FeatureWavelengthnm1310±10 Output powermw4~24 Return lossdB≥55 Optical fiber connector SC/APCOptional FC/APCRF FeatureWork bandwidthMHz45-862 Input leveldBmv15~25AGCFlatnessdB≤±0.7545~862MHzReturn lossdB>1645~750MHzInput impedanceOhm75RF/InputRF interface F TypeOptional ImperialLink FeatureTransmit channel PAL-D/60CHNTSC/80CHCNRdB≥5210km optical fiber,0dBm receiveCTBdB≤-70 CSOdB≤-63 General FeatureNetwork management interface RJ45,RS232Support I.E & SNMPPower supplyV90~265VACOptional -48VDC(30~60VDC)Power consumeW≥50Single power worksWork temp°C-5~65Machine temp. Control automaticallyStorage temp°C-40~85 Operating relative humidity%5~95 Size: W*D*H 483*360*44 (mm) Our WorkshopOur advantages* As a world class manufacturer we can ensure you are getting world class quality at a competitive  price. * We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices. * We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer. Customer first, service foremost If you have any other questions, please feel free to contact with me. I will reply you at my first time. Thank you for visiting our products, have a good day:)       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
