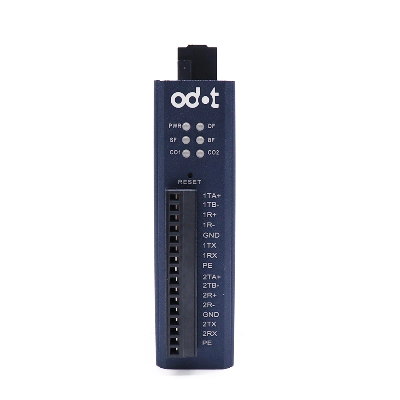

RS485/422/232 Gateway Modbus-RTU/Ascii to Profinet Protocol Converter

Product DescriptionProduct Name:ODOT-PNM02 Modbus-RTU/ASCII to PROFINET protocol converter.Product Overview:ODOT-PNM02 gateway is a Modbus-RTU/ASCII to protocol converter.This product can connect Modbus device to PLC(S7-300/1200/1500/400)with PROFINET communication interface.It adopts aluminum alloy shell with firm design and supports DIN-rail installation.All serial signal provides built-in photoelectric isolation.Function:*Supports protocol conversion between Modbus and PROFINET.*Supports 2*RS485/RS232 or1*RS422.*Supports Modbus master or slave,and supports RTU or ASCII *Supports working temperature of -40~85ºC.*Supports data area:2 serial Modbus-RTU/ASCII to PROFIBUS gateway with Max.input 1440 bytes and Max.output 1440 Bytes*Supports one key reset.Detailed PhotosProduct Parameters Mechanical properties:Modbus SerialShell:Aluminum alloyPort Number: 2weight:335gSerial Port:RS485/422/232Dimension:27.5*110*110mmWiring:3.81mm plug screw terminal Working Temperature:-40ºC~85ºCESD protection:±16KVStorage Temperature: -55ºC~125ºCRs485 Tetminal  Resistance:External 120Relative Humidity: 5~95%(no condensation)Data Bits:7,8Input Voltage:9~36VDCStop Bits:1,2Wiring:3.81mm plug screw terminalCheck digit:None,even,oddPower:Max.200MA@24VBaud Rate:2400~115200bps Function Code:01/02/03/04/05/06/15/16CertificationEthernet InterfaceEMC:CEProtocol:PROFINETWarranty period:Module Slots:50pcsShelf life:3 yearsTerminal Number:2waysSoftwarespeed:10/100Mbps adaptive,Auto-MDI/MDIXConfiguration/Testing software AIO-Box ConfigConnector:8 Pin Rj45    ApplicationCompany ProfileFAQQ1. Can you get a free sample?Yes, you will. but we need to charge for samples, we will return sample fee in later order. Q2. Can you get better price? or discount? Yes. we can give you discount. But it is based on quantity. More quantity more attractive price. Q3.OEM, ODM Severice is available? Yes.ODOT company provide OEM/ODM service to our customers. Q4.How about the payment terms? T/T, L/C at sight, western union(30% deposit and 70%T/T . Q5. Can you be responsible for the shipment? We will organize and schedule all shipping to your office if you need. Q6. Lead time? Sample order: 3-6 works days. Bulk order: 7-30 work days after payment. Q7. What is your warranty period? Warranty period is 3 years. This warranty does not cover damage caused by man-made damage, improper care, improper use, negligence,normal wear and tear, and force majeure such as natura disasters, earthquakes, fires, etc.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
