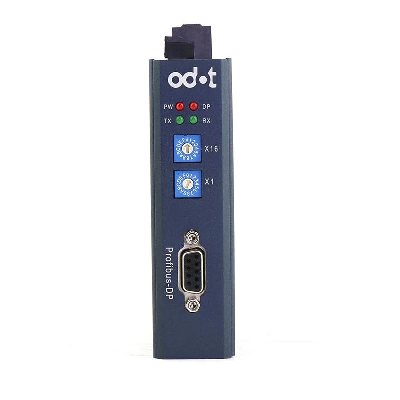

-40-85 Working Degree Gateway Modbus RTU to Profibus Converter

Product DescriptionProduct Name:-40-85 Working Degree Gateway Modbus RTU To Profibus ConverterProduct Overview:Supports protocol conversion between Modbus and PROFIBUS♦Supports RS485, RS422 and Rs232♦Supports Modbus master and slave, and supports RTU or ASCII♦Supports working environment of -40~85°C♦PROFIBUS-DP: Max. Input 244 bytes, Max. Output 244 bytes♦DPM01:1-way Modbus to PROFIBUS slave gateway, sum of input and output is 288 bytes.♦DPM02: (customization) 1-way Modbus-RTU to PROFIBUS slave gateway, sum of input and outputis488 bytes. Detailed PhotosProduct Parameters Mechanical properties:Modbus SerialShell:Aluminum alloyPort Number: 2weight:335gSerial Port:RS485/422/232Dimension:27.5*110*110mmWiring:3.81mm plug screw terminal Working Temperature:-40ºC~85ºCESD protection:±16KVStorage Temperature: -55ºC~125ºCRs485 Tetminal  Resistance:External 120Relative Humidity: 5~95%(no condensation)Data Bits:7,8Input Voltage:9~36VDCStop Bits:1,2Wiring:3.81mm plug screw terminalCheck digit:None,even,oddPower:Max.200MA@24VBaud Rate:2400~115200bps Function Code:01/02/03/04/05/06/15/16CertificationEthernet InterfaceEMC:CEProtocol:PROFINETWarranty period:Module Slots:50pcsShelf life:3 yearsTerminal Number:2waysSoftwarespeed:10/100Mbps adaptive,Auto-MDI/MDIXConfiguration/Testing software AIO-Box ConfigConnector:8 Pin Rj45    ApplicationCompany ProfileFAQQ1. Can you get a free sample?Yes, you will. but we need to charge for samples, we will return sample fee in later order. Q2. Can you get better price? or discount? Yes. we can give you discount. But it is based on quantity. More quantity more attractive price. Q3.OEM, ODM Severice is available? Yes.ODOT company provide OEM/ODM service to our customers. Q4.How about the payment terms? T/T, L/C at sight, western union(30% deposit and 70%T/T . Q5. Can you be responsible for the shipment? We will organize and schedule all shipping to your office if you need. Q6. Lead time? Sample order: 3-6 works days. Bulk order: 7-30 work days after payment. Q7. What is your warranty period? Warranty period is 3 years. This warranty does not cover damage caused by man-made damage, improper care, improper use, negligence,normal wear and tear, and force majeure such as natura disasters, earthquakes, fires, etc.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
