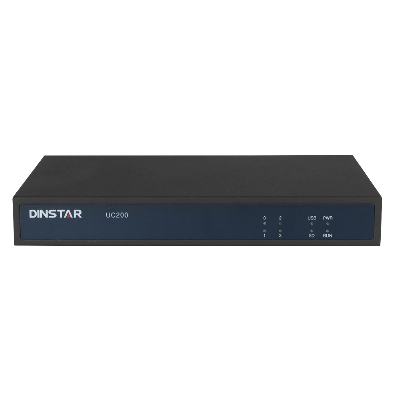

500 SIP Extension Compact Powerful VoIP PBX UC200 4FXO

UC200 IP PBX for SMEsUC200 is an IP telephony system, which is used to help small and medium-sized enterprises establish a convenient and high-efficient communication way. The gateway provides 2 FXO ports and 2 FXS ports, and meanwhile it can be extended based on the Session Initiation Protocol (SIP). Interworking with traditional PBX and third party IPPBX system, it allows users to communicate through voice, fax, data or video. Besides, UC200 supports VPN, encryption and security strategies, and thus ensures secure communication. It can be widely used in small and medium-sized call centers, enterprise branches to improve work efficiency and save communication cost.   SpecificationsKey Features* Supports up to 200 SIP users and 60 concurrent calls* Supports 2 FXO and 2 FXS ports with lifeline capability* Flexible dial rules based on time, number or source IP etc.* Supports Multi-level IVR(Interactive Voice Response)* Built-in VPN server/client* Support voicemail/ Voice recording* User-friendly web interface, classification of web user's rightsPhysical Interfaces* FXS: 2 *FXS Ports* FXO: 2 * FXO Ports* USB Interface: 1* USB2.0* Ethernet Interfaces 1 WAN, 100/1000M, Base-T, RJ45; 1 LAN, 100/1000M, Base-T, RJ45* 1*SD card slot* 1* Console port* LED Indicators: PSTN Line, FXS, USB,SD,PWR/RUNVoice Capabilities* VoIP Protocols: SIP over UDP/TCP/TLS,RTP/SRTP* Codecs: G.711a/μ law,G.723.1, G.729A/B* Silence Suppression* Comfort Noise Generator(CNG)* Voice Activity Detection(VAD)* Echo Cancellation: G.168 with up to 128ms* Dynamic Jitter Buffer* Adjustable Gain Control* Automatic Gain Control (AGC)* Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone* FAX: T.38 and Pass-through* NAT: STUN/UPnP* DTMF: RFC2833/Signal/Inband* VPN Server/ClientPBX Services* Call Forward (Unconditional/No Answer/Busy)* Call Waiting* Call Holding* Call Transfer* Hotline* Do-not-disturb* 3-Way Conference* Ring Group* Call Queue* Routing Groups* Caller/Called Number Manipulation* Routing Based on Time Period* Routing Based on Caller/Called Prefixes* Routing Based on Source Trunks* Dial Rules* Failover Routing* Multi-level IVR* Auto-attendant Function* CDRs* Voicemail* Voice Recording(Support USB Storage)* Up to 200 SIP Extensions* Up to 60 Concurrent Calls* Paging* Event Report* Email Client* Voicemail to EmailFXS* Connector: RJ11* Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF* Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone* Polarity Reversal* Hook FlashFXO* Connector: RJ11* Caller ID: FSK, DTMF* Polarity Reversal* Answer Delay* Detection of Busy Tone* Detection of No Current* Auto Match of FXO ImpedanceMaintenance* Web GUI Configuration* Telnet Management* Configuration Restore/Backup* Multiple Languages Supported* HTTP/TFTP/FTP Firmware Upgrade* Auto Provision* Syslog* Ping and Tracert* Traffic Statistics: TCP,UDP,RTP* Network Capture* NTP* Classification of Web Users' Rights* HTTP&HTTPS/NATS APIEnvironmental* 1+1 Power Supply, 100-240VAC, 50-60 Hz* Power Consumption: 50W* Operating Temperature. 0 ºC ~ 40 ºC* Storage Temperature: -20 ºC ~90 ºC* Humidity: 10%-90% Non-Condensing* Dimensions (W/D/H): 240×180×35mm* Unit Weight: 1 kgModel List of IPPBXModelWiFiSIP ExtensionsConcurrent CallsMobile ChannelFXSFXOE1UC100 (MOQ500)2.4GHz,802.11b/g/n3281110UC1202.4GHz,802.11b/g/n60151110UC200NO500300220UC350NO1000200032324UC2500NO50003000808032UC8000NO2000040000000CertificateWhy Choose UsExhibitionPayment & DeliveryFAQ1. Can I get a free sample?We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.2.What's your MOQ?No MOQ for any sample test3.OEM/ODM service is available?Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.4. For Trade Terms, such as payment and leadtime?Payment Term: we mainly support T/T bank transfer, Paypal, Western UnionShipping method: DHL, Fedex, TNT, UPS, by sea, or your ownshipping agent5. How about the warranty?12 monthsWhile the warranty is not responsible for those broken by violence or updated with other brands./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
