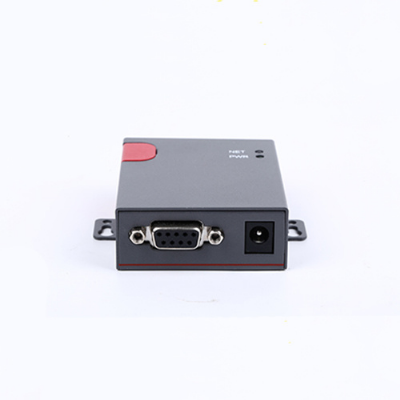

D10series Wireless M2m GSM GPRS Modem with RS232, SMS

Product DescriptionD10series  Wireless M2M GPRS Modem with RS232, SMS  D10series  GSM modem is based on 2G GSM network and adopts industrial wireless GSM module. It supports SMS and CSD function. D10series  GSM modem is designed with industrial standard and has been widely used on finance, water supply, environment protection, electric power system, post and weather fields   D10series Industrial M2m Edge SMS Modem with RS232 for SMS, Csd, Dial-up for SMS    Product Parameters Details   Features and Benefits  Design for Industrial ApplicationHigh-powered industrial cellular moduleHigh-powered industrial 16/32 bits CPUSupport low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)Housing: Iron, providing IP30 protectionPower range: DC 5~26V Stability and ReliabilitySupport hardware and software WDTSupport auto recovery mechanism, including online detect, auto redial when offline to make it always onlineRS232/RS485/RS422 port: 15KV ESD protectionSIM/UIM port: 15KV ESD protectionPower port: Reverse-voltage and overvoltage protectionAntenna port: Lightning protection(optional) Standard and Convenience Support standard RS232 and RS485(or RS422) port that can connect to serial devices directlySupport intellectual mode, enter into communication state automatically when poweredProvide management software for remote managementSupport several work modesConvenient configuration and maintenance interface Cellular Module Specification Cellular ModuleIndustrial cellular moduleStandard and BandUMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional)GSM850/900/1800/1900MHzGPRS/EDGE CLASS 12BandwidthHSUPA: 5.76Mbps(Upload speed)/ HSDPA: 7.2Mbps(Download speed)/UMTS: 384Kbps (DL/UL)TX power< 24dBmRX sensitivity< -109dBm Hardware SystemCPU: Industrial 16/32 bits CPU FLASH :1MB(Extendable)SRAM5 :12KB(Extendable) Software System Serial1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protectionData bits: 5, 6, 7, 8Stop bits: 1, 1.5, 2Parity: none, even, odd, space, markBaud rate: 110~230400 bpsIndicator" Power" , " ACT" , " Online"AntennaStandard SMA female interface, 50 ohm, lighting protection(optional)SIM/UIMStandard user card interface, support 1.8V/3V SIM/UIM card, 15KV ESD protectionPowerStandard 3-PIN power jack, reverse-voltage and over voltage protection Environmental Limits Operating Temperature-30~+75º C (-13~+149F)Extended  Operating Temperature-40~+85º C (-22~+167F)Storage Temperature-40~+85º C (-40~+185F)Operating Humidity95% ( unfreezing)    Company Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
