High-Quality CDMA EVDO with LGA Huawei Module (MC509)

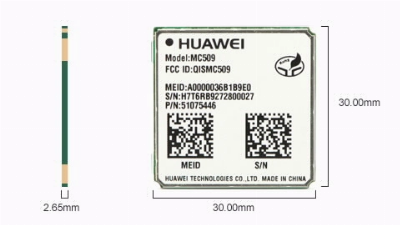

Specifications MC509 is a high-quality CDMA EVDO with LGA form factor designed for industrial-grade M2M applications such as vehicle telematics, asset tracking, mobile payment, industrial router, safety monitor and industrial PDAs. MC509 supports 3.1Mbps downlink data rate, providing data and voice service under CDMA EVDO networks. MC509 is completely compatible both pin-to-pin and the AT commands with MU509 family. Four variants are available and certified under Verizon network: MC509 1X without GPS MC509 1X with GPS MC509 EVDO without GPS MC509 EVDO with GPS All Huawei modules comply with the RoHS directive and Regional certification.   Form FactorContent start145 -pin LGAContent endBandsContent startEVDO Rev.AMC509 EVDO: dual-band 800/1900 MHzMC509 1X: dual-band 800/1900 MHzContent endData Transfer RateContent startDownlink:3.1Mbps, Uplink: 1.8 MbpsContent endInterfaceContent startAntenna interfaceUSB 2.0 full speedControl InterfacesPCM VoiceUARTR-UIM Card (1.8V/3.0V)Power SupplyResetContent endPower SupplyContent start3.2 V to 4.2 V (typical: 3.8 V)Content endVoiceContent startAnalog AudioPCM VoiceContent endTemp RangeContent startNormal Operation: -20ºC to 70ºCExtended Operation: -30ºC to 75ºCContent endGPS / GlonassContent startGPSContent endApprovalsContent startCTACCCFCCRoHSVerizon CertifiedTOP offers communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price. module brands include Sierra, Simcom, Cinterion, Huawei, Holux, Globalsat, GlobaTop, Skylab, Telit, U-blox etc.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
