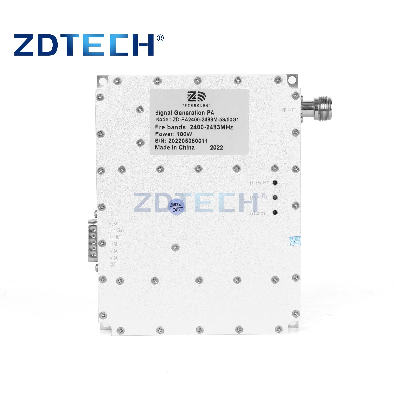

20-6000MHz Signal Generator PA Jammer Module

Item Parameter Remark working frequency 20M-6000M   power 100W   Operating Voltage 28V 24-36V Conversion efficiency ≥42% @100W Adjustable output power 10W~100W Software set power ALC power adjustment range ≥20dB Voltage Controlled Attenuation gain 48±1.0dB   In-band fluctuation ≤2.5dB peak spurious emissions In working band ≤-15dBm/1MHz Measured when the center frequency plus CW signal to the maximum output power   Out-of-band 9KHz~1GHz No higher than normal noise floor clutter       1G~12.75GHz     Maximum allowable input power ≥+10dBm Lasts 1min without damage Input VSWR ≤1.35 Add +28V, standard network output -10dBm Output VSWR ≤1.35 No power, standard network output -10dBm   ≤1.35 Power On, Dual Directional Coupler Test High and low temperature test Working environment temperature (ºC) -10~+65ºC Low temperature can start, monitoring works normally   Gain Stability ±1.5dB @-40ºC~+65ºC     power stability ±1dB @-40ºC~+65ºC   Power Requirements ≥8A @+28Vdc; CW output 100W Power supply interface, communication interface RS485 7W2 Male, 1:485A; 2:485B RF output connector N-Female connector with 3 LED lights POWER: Power indication; RUN: Running indication; ALARM: Alarm indication; physical dimension 700M-6G:155*125*26mm; 20M-500M:155*125*35mm weight
