900-1100MHz Anti-Drone Signal Jammer Wide Band Power Amplifier

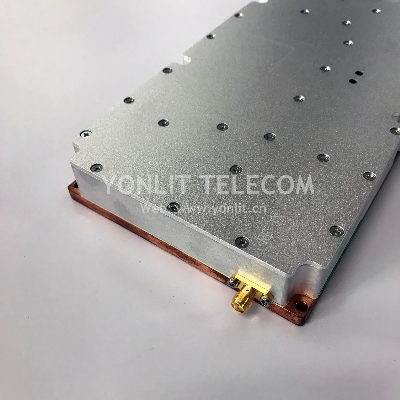

PRODUCT DESCRIPTION:This wideband Power Amplifier module is working for L&GPS RF bands, model type: PWR-GPS-WB with aluminum case, it need operating on heatsink.This product are using GaN technology that is able to cover the superwide bandwidth, power range can be customized from 44-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.More function and parameters are avaiable to customized according to actual requirement.TECHNICAL SPECIFICATION:Frequency: 900-1100 MHzOutput Power: 100 wattsInput Power: 0-5dBmEfficiency >35% (CW)Modulations: CW, AM, FMClass of amplifier: Class ABOperating case temperature: -40 to +60oCDC Input: +28VDC PAYMENT TERMS, ORDER INFO & PACKINGWe accept T/T and Western Union for payment.Leadtime within 1 month, subject to actual requirement might have change.Product will got packed in carton with foam, each unit will have single box for packing.If need more information, please send us email.CONTACT INFO:Ally Zhu                                                                               Shenzhen Yonlit Telecom Technology Co., Ltd. Website: http://yonlit.en.made-in-china.com, http://yonlit.en.made-in-china.com, http://yonlit.en.made-in-china.com  Add: No.B401-403, QinYe Building, XinAn Sixth Road,Subdistrict 82, BaoAn District, Shenzhen, China./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
