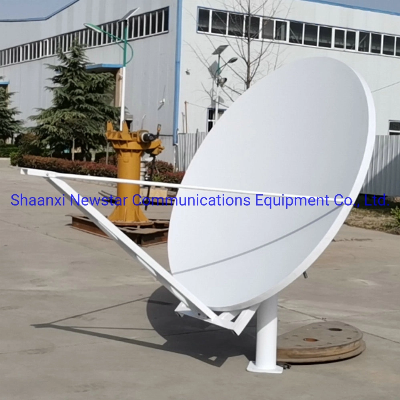

6 Feet One-Panel Aluminum Antenna with Stable Structure

6 feet one-panel aluminum antenna with stable structureCharacteristics:1.Meets or exceeds CCIR 580 and INTELSAT requirements2.Offset antenna;3.Light weight,small volume,high accurancy,high strength;4.High gain, Low sidelobe, high G/T rate;5.Hot-dipped zinc processed Antenna mount, with strong corrosion resistant ability;Accessories:Foundation drawing, foundation template, anchor bolts. Optional:Non-penetrating mount.ELECTRICAL SPECIFICATIONSModel NS-SEC-180 NS-SEC-180C-band Ku-band RX TX  RX TX Frequency, GHz 3.4~4.2 5.85~6.72510.95~12.7513.75~14.5 Gain,Mid-band, dBi 35.22@3.95Ghz39.13@6.2Ghz 45.22 @12.5Ghz46.36@14.25Ghz PolLinear / circularLinear VSWR  1.25 1.25 1.25 1.25Cross polarization Isolation, dB3535 Noise temperature (2-Port Feed) 10°elevation   20°elevation  40°elevation  35°K 29°K 26°K  43°K 36°K32°K   -3dBBWave width, Mid-band 2.85° 1.82° 0.9°  0.79°Isolation,Rx to Tx,dB8585 G/T  16.62dB/K(30° LNA) 24.48dB/K(70° LNA) Feed loss, dB 0.2 0.2 0.4 0.5 Power Conten, KW  5  2 Interface CPR-229G CPR-137G WR-75 WR-75First sidelobe≤-14Side lobe envelop29-25 log(θ) dBi    1°≤θ≤20°MECHANICAL SPECIFICATIONS Size 1.8m Type Offset Kingpost Az / ElSurface accuracy (RMS)≤0.5mm Driver model Manual Panel materialAluminum Panel qty 1pcs Travel range  Az El Pol 0-360° (continuous)5°~90° (continuous) ±90° (continuous)   ENVIRONMENTAL SPECIFICATIONSWind speed of work72kmph work wind speed(Hold the precision )97kmph work wind speed(Lower the precision )  200kmph Survival Winds(Upturned lock)Ice Load, Survival13mm Wrapped ice normal work25mm Wrapped ice survivalTemperature-30ºC~50ºCRelative Humidity100%Surface treatmentSteel parts: thermal-spraying zinc Aluminum parts:spray paintSolar Radiation1135Kcal/h/m²/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
