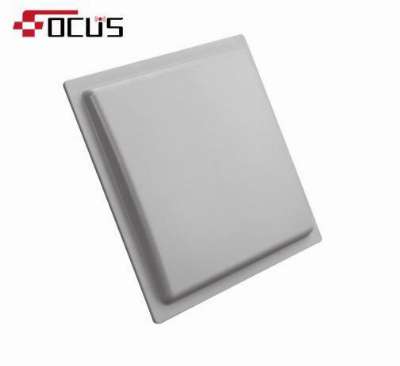

902-928MHz High Performance St-An1201V RFID UHF Antenna

 UHF Vertical/Circular 12dbi AntennaModel Number: ST-AN1201VGeneral DescriptionsST-1201V is high performance UHF circular 12dBi antenna and the reading distance up to 10 meters. It is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.Technical SpecificationsModelST-AN1201VElectrical specificationsFrequency range (MHz)902-928Mhz,865~868MhzPolarizationHorizontal or VerticalGain(dBi)12dBiHalf-power beam width(°)Hor:40  Ver:40Front-to-back ratio(dB)≥25Impedance(Ω)50VSWR≤1.3Maximum input power(W)50Lightning protectionDC GroundMechanical specificationsConnectorN-femaleConnector positionBottomsize(mm)450*450*40mmPacking size(mm)480*480*55mmAntenna weight(kg)2.5kgPacking weight(kg)4kgWind loading area(m2)≤0.2Rated wind velocity(m/s)60Reflector materialAluminumMaterialABSColorWhiteOperating temperature(ºC)-40~70Mounting hardware(mm)Ф40~50  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
