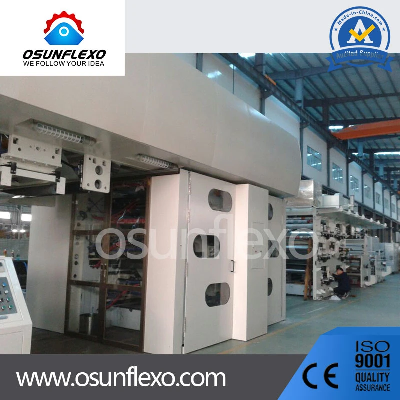

High Speed Ci Satellite Flexo Printing Machine

CONSTIRUENTSl  Unwinding unitl  Unwinding driven unitl  Pre-heating unitl  Printing unitl  Drying unitl  Rewinding driven unitl  Rewinding unitl  Control system and operating platformMACHINE MAIN TECHNICAL FEATURESA.     Printing material:                                                       PPPEPETPVC...B.      Web thickness:                                                         10-70μmC.      Max. printing width:                                                  800~1500mmD.     Printing colors:                                                          4~12 colorsE.      Printing repeat:                                                        400-800mm(φ127-φ255mm)F.    Plate/Tape thickness :                                               (a) 1.7+0.38mm    (b) 1.143+0.5mm G.     Max. machine speed:                                                 450m/minH.     Printing speed:                                                         15-400m/minI.       Lubrication system:                                                  Centralized lubricationJ.       Web direction:                                                         From left to right(from operator's side)K.      Ink type:                                                               Water-based,  ethanol-based or solvent-based inkL.      Driven method:                                                        Servo motor drivenM.     Register precision:                                                    ±0.1mmN.     Power supply:                                                          380V,50Hz(Or at customer's requirement)O.     Max. unwind/rewind diameter:                                  φ600mmP.      Heating method:                                                     Electrical heating (Available of  hot oil, gas heating)Q.     Total Motor power:                                                  110kw(based on 1200-8)R.      Running power:                                                     60KW  (based on 1200-8)  S.      Electrical heating power:                                         120KW (based on 1200-8)T.      Max. noise:                                                         Lower than 85dBa(1m from the machine)U.     Suggestion operation temperature:                        10-35 0CV.     Relative humidity:                                                30-80%(200C as reference temperature)W.    Elevation height:                                                 Max.1000mX.     Compression air:                                                 No lubrication,drying and wipe off humidity with filter         Air pressure:                                                       6Bar   Dew point:+20CY.     Tension control:                                                     6~18kg/full loadZ.      Cooling water:                                                     Filter:less than 20u                                                                                      pressure:Min.2Bar--Max.3Bar                                                                                      cooling roller entering water temperature(room temperature+200C):from 15ºC to 180ºC                                                                                      central drum recycling water temperature:300ºC±20ºC                                                                                      hardness(CaCO3):2.5-4mg/L                                                                                      PH:7-8.2AA.  Machine color:                                                      RAL3020(red)+RAL7035(cream)BB.  Machine size(L×W×H):                                      11m×4.5m×5.5 m /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
