5km Long Range RF Receiver Module Kl-Bt01

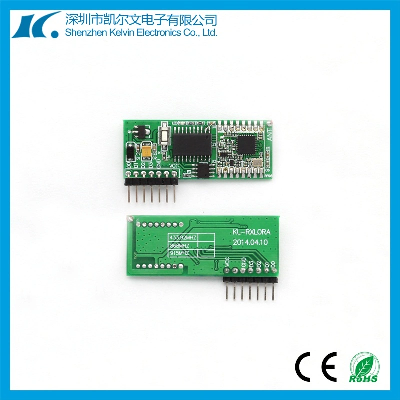

5Km long range rf receiver module KL-BT01  KL-BT01 is our currently developed a new bidirectional receiver module. Its core is the use of spread spectrum communication techniques, greatly enhancing the anti-jamming performance.1. Characteristic:Ø  High sensitivity, -148dBm.Ø  Small size (50*20*7mm).Ø  Low power consumption.Ø  Low self emission, can easy pass all kinds of certification.  2. Specification:Ø  Frequency: 434/868/915MHzØ  Working Voltage: DC3-12V, optionalØ  Working Current: 16mAØ  Modulation: ASK/OOKØ  Emission Current: 65mAØ  Working Temperature: -10~70°C 3. Applications:1). Garage door and gate openers2). Electric windows, barrier, etc.3). Remote controls and smart home alarm4). Low baud rate for data transmission4. Pin Assignment:PinPin FunctionD0Data OutD1Data OutD2Data OutD3Data OutGNDGNDEmptyEmptyVCCVCC5.Usage      A.Match Code: Press match code button K1 for 3seconds, LED indicator lights, and press any buttons on remote control. When LED flashes 2times, it means finishing matching code.       B.Delete Code: Press K1, not let go the hand until LED flashes 3times, and then delete code successfully.C. Select output mode: can use dip switch to select output mode:Push no.1 on dip switch to ON position, output Latch(interlock);Push no.2 on dip switch to ON position, output Toggle(self-lock);no.1 and no.2 are not pushed to ON position, output Momentary(non-lock)no.1 and no.2 are pushed to ON position, Setting is invalid, no output.  This receiver module is a bidirectional transmitting& receiving module, matching with bidirectional remote control. Customer can choose to return signal or not. If yes, push no.3 on dip switch to ON position (corresponding S1 on remote control).This receiver module will transmit a signal after receiving it from bidirectional remote control. When bidirectional remote control receives the signal, the buzzer will send the sound 'dip-'And that indicates bidirectional remote control is normal to receive communication   5. Shipping1) Express: DHL, FedEx, UPS, TNT, EMS, etc.2) By air3) By sea4) By special lineDepends on buyer's requirement.  6.FAQ1) What is your warranty period?Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange. 2) If i don't know how to use the products, what can i do?Pls contact us whenever you need our help, even we are not online. You can write email to us, or contact us byTrademanager, Skype, and other IM tools. We are all very glad to answer your questions.  3) What certifications do you have?Most of our products are approved with CE certification, some are with FCC. If you have any other requriements with certifications, we also would like to help you.  7. Our Service1. Accept OEM, ODM &silk-screen printing you logo on the shell.2. Response in 10 hours.3. Experienced R&D staff.4. Professional SMT equipments.5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.6. Delivery by DHL,UPS,EMS or by sea as your requirments. 8. For order1).Accept OEM.2).Print logo on the case and pakage3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)4).Minimum Order:100 pcs (accept trial order)5).Delivery Details: within 3-5 days depends on order quantity.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
