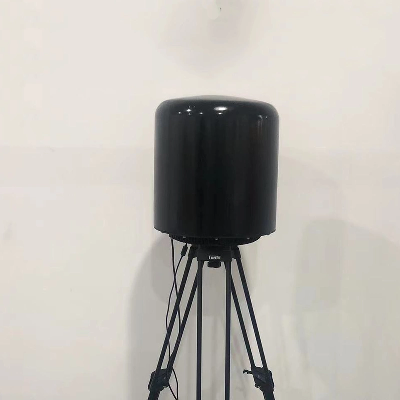

300MHz~6GHz 3km 6km Uav Drone RF Detector

Brief introduction   UAV direction finding detection equipment is a radio signal detection equipment in the field of UAV control. The equipment has full-band UAV transmission and image transmission signal detection, UAV model recognition, UAV detection and alarm functions. The equipment has a direction finding function, which can track the azimuth trajectory of the UAV and can be linked to the directional strike equipment to implement precise countermeasures. UAV detection equipment can be used for large-scale event support and can also be used for protection in key places. The device can be used alone or in conjunction with drone countermeasures. Can be deployed individually, in-vehicle and stationary.   Features1. Detection frequency range: 300MHz~6GHz2. Detection angle: 360°3. Detection distance: ≥ 6km4. With UAV identification library, it can automatically identify targets5. Detection and recognition rate: ≥ 95%.6. With pilot positioning function  Performance metrics1. Detection frequency range: 300MHz~6GHz. 2. Detection angle: 360°3. Detection distance: ≥ 2.5 km (city) ≥6 km (suburb).4. Direction finding accuracy: ≤3 ° (RMS).5. Identify the number and model of drones at the same time: the number ≥ 10, the model ≥ 5, the brand ≥ 26. Scanning speed: greater than 200MHz/s7. With early warning capabilities, no need for unmanned aerial vehicles to take off, ground start-up can be detected, with early warning capabilities, the minimum relative detection height: 0m. 8. Tracking speed: The drone can be successfully detected when the speed ≥ 15 m/ s9. Working temperature: -40 °C ~ 75 °C. 10. Power supply mode: AC 220V/DC DC12V11. Response time: The UAV appears within the detection range (≥3km), and the response time of the detection UAV ≤2s12. With positioning direction calibration function: when the equipment is started, it can automatically calibrate the reference direction of the equipment with the due north direction as the reference, automatic positioning, and display on the map. The direction finding accuracy ≤ 2°, and the positioning accuracy ≤ 10 meters13. The system has a cross-positioning function and can locate the UAV.14. It has the function of pilot positioning (positioning remote control or operator).15. The system supports the use of fixed IP and dynamic IP access16. The system can identify and report the model of the UAV, frequency point, bandwidth, signal strength, distance, discovery time, orientation and other information. 17. A black and white list of drones can be established, which can accurately identify their own and illegal drones, and whitelist drones do not warn18. After the detection device detects that an aircraft has entered the defense area, the device can notify the client of relevant intrusion information, and the main interface of the client will have an alarm prompt and a voice prompt; the map shows the flight trajectory of the drone. 19. With the direction of the UAV derived from the detection equipment, it automatically guides the target to interfere with the countermeasure20. Establish a UAV identification library, support the identification of UAV targets, identify and report UAV signals that are not built in the library, update the database, and expand the UAV spectrum feature library. 21. Passive detection function: The system should not actively emit and detect electromagnetic waves during the process of detecting UAV signals22. Single operation: equipment deployment time: ≤2.0 minutes; equipment withdrawal time: ≤2.0 minutes;23. Electromagnetic compatibility test: (1) Electrostatic discharge immunity: to meet the severity of GB/T 17626.2 in the severity of the electrostatic discharge immunity test; (2) to meet the GB/T 17626.3 in the harsh level 3 of the RF electromagnetic field radiation immunity test/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
