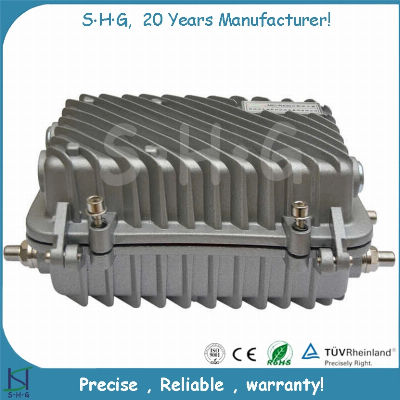

Hfc 5-862MHz Two Way CATV Trunk Amplifier

HT-8030 series HFC two-way CATV Trunk Amplifier are single-module two-way trunk amplifier, it adopts high gain RF amplifier module and advanced circuitry design to ensure the excellent performance. It is mainly applied to the one-way/two-way CATV transmission network.Features:1. 862MHz band-width.2. Adopts high gain push-pull or GaAs amplifier module to ensure high level and good SNR.3. The design of two-output can replace the mode of distribution or subdivision flexibly.4. Built-in modulated equalizer and modulated attenuator, convenient to debug.5. Plug-in (reserved) reverse module may open up reverse channel easily.6. External power pilot light, easy to observe the operating status.7. Die-cast aluminum housing, high-quality switching power supply and the effective lightningproof measure.Pictures:Parameters:Items        Units       Specifications  Forward path                    Return path                 Frequency rangeMHz47(87)~8625~30(65)Nominal gaindB3018Nominal output leveldBuV102100In-band flatness          dB≤ ± 0.75≤ ± 0.75Gain adjusting rangedB0~-180~-18Slope adjusting rangedB0~180~15C/CTBdB≥ 60≥ 70C/CSOdB≥ 60≥ 72Noise figure          dB≤ 9.0Return lossdB≥ 12HUM%2Power supplyVAC35~70 or AC160~260Power consumption max.                        W13Anti-lighting capacityKv5(10/700µ s)Dimensionmm270× 180× 110Packing dimensionmm325× 198× 138Gross weightKg2.2Other Optical Transmission EquipmentOther Optic test instruments Certificates ISO9001:2008,  CE,  RoHS,  REACHOur AdvantagesWhy Choose usFAQFAQ Q1:  Are your company factory?       SHG:  Yes!  SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.Q2:  Do you company offer OEM service?       SHG:  Yes! OEM available, your logo & reference on products & package available. Q3. What's your products lead time?    SHG:  Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received).Q4. Where is your nearest sea-port and airport?      SHG:  The nearest sea-port is Ningbo, Shanghai.                 The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge. Q5. What's your Payment Term?      SHG:  We perfer T/T.  30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method. Q6. Quality and Reputation:      SHG:  SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
