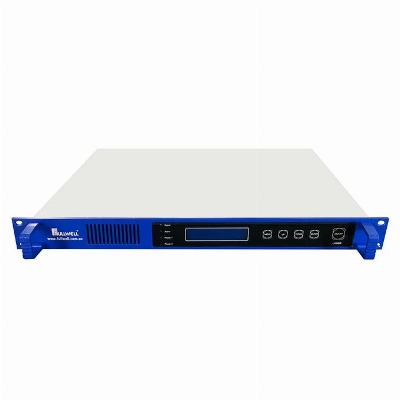

High Performance 1310nm Aoi Laser Optical Transmitter for Hfc

High performance 1310nm laser optical transmitter     Product Description  FWT-1310T series 1310 nm optical transmitter series products use the laser with the function of high linearity, light isolation, distributed feedback, thermoelectric refrigeration DFB from the famous company in the world such as the brands from United States XT, ORTEL, AOI, Japan Fujitsu etc. It provides High-quality image, digital or compressed digital signal transmission for cable television and telephone communications. The inner part of the device built-in RF driving amplifier and control circuit to ensure the CNR,CTB,CSO index of the whole device, improving optical power output stability circuit and temperature stability control circuit for  thermoelectric chiller laser to ensure the best performance of the whole machine and the long life stability of the laser. Laser is the most valuable component of the device, and it is equipped with microprocessor. Microprocessor software monitors the working state of the laser, and the working parameters are displayed by the panel LCD. Once the operating parameters of the laser deviate from the allowable range set by the software, the microprocessor will automatically turn off the laser power supply. Yellow light flicker prompt alarm, and the panel LCD indicates the cause of the failure. (non-human factor can't damage laser). RF pre-distortion technique can obtain the maximum CNR under the condition of excellent CSO performance. Moreover, the transmitter with 19"1 U standard chassis, built-in high performance hot-pluggable dual switching power supply, can work in 85∽265VAC city network voltage. Product FeatureTop quality: The original system optimization control technology and RF pre-distortion technology ensure the system to obtain the largest CTB, CSO and SBS indicators under the condition of excellent CNR performanceReliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.Intuitive: The laser is the most expensive component of the device. The built-in microprocessor software monitors the working status of the laser, and the working parameters are displayed on the panel LCD. Once the laser working parameters deviate from the allowed range set by the software, the microprocessor will automatically turn off the laser power. The yellow light flashes to indicate an alarm, and the panel LCD indicates the cause of the failure.Network management type: SNMP network management, can realize the network management WEB monitoring function.Can be customized 2 outputs, optical power 5 ~ 7dBm output.   Technical ParametersItemUnitPerformance ParameterNoteLaser Model DFBXT, ORTEL, AOI, FujitsuWavelengthnm1310±10Specified Before OrderingOptical Modulation Method Directly Modulated Optical Output PowermW14~28 Channel Number (Analog)N59 Optical Connector  FC/APC or SC/APCSpecified Before OrderingFrequency RangeMHz47~750(862) CNRdB≥52.0 FlatnessdB±0.83 RF Input Signal LeveldBuV72~88 C/CTBdB≥65.0 C/CSOdB≥65.0 RF Input ImpedanceΩ75 RF Input Reflection LossdB>16(47~550)MHz>14(550~862)MHz Power SupplyV90~265VAC Power ConsumptionW≤50Hot-pluggable Dual Power SupplyWorking TemperatureºC0~50Automatic Temperature ControlStorage TemperatureºC-20~85 Operating Relative Humidity%20%~85% Dimension″19"x15"x1.83"(W)x(D)x(H)Network Management Interface RJ45Supporting Web Browser and SNMPProducts Model Series FWT-1310T -14  (optical output power, ≥ 14mW)FWT-1310T -16  (optical output power, ≥ 16mW)FWT-1310T -18  (optical output power, ≥ 18mW) FWT-1310T -20  (optical output power, ≥ 20mW)FWT-1310T -22  (optical output power, ≥ 22mW)FWT-1310T -24  (optical output power, ≥ 24mW)FWT-1310T -26  (optical output power, ≥ 26mW)FWT-1310T -28  (optical output power, ≥ 28mW)     If you have another question, please feel free to contact me directly as below:Hangzhou Fullwell Optoelectronic Equipment Co., LtdAdd:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, ChinaContact person: Leo Yao"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
