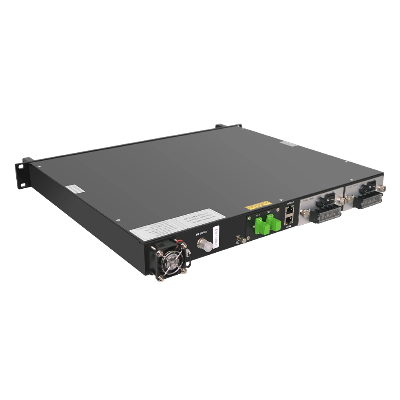

FTTH Internal Modulation 1550nm Fiber Optical CATV Laser Transmitter

FTTH Internal Modulation 1550nm Fiber Optical CATV Laser Transmitter DescriptionST1550 series Advanced type Internally Modulated CATV optical transmitter adopts low noise, narrow bandwidth, and continuous-wave laser as its light source. It uses high linearity LiNbO3 internal modulator to modulate the signal. It eliminates the Chirp Effect of 1550nm direct modulation laser. Due to adopting owned system optimized control technology & using top-grade key parts, the machine's technique performance index achieves the standard of same advanced products in the world totally. Characteristic1. Low chirp effect, high linearity DFB laser 2. Dual Module, therefore, drive, chirp compensation 3. Laser OMI AGC/MGC 4. Intuitional modulation status display 5. Dual power supply inside the backup. Full-automatically switch 6. Full-automatically control of casing temperature   PerformanceIndexSupplementOptic featureLaser wavelengthnm1550±10Accordant with ITU-TG.692 Standard wavelengthLinearity widthMHz≤1ΔλEquivalent noise intensitydB/Hz≤-160RIN 20~1000MHzSide mode suppression ratiodB≥35SMSRExtinction ratiodB≥20XPOutput powerdBm2×71×7, 1×10, 2×6, 2×7SBS restraindBm≥17 Return lossdB≥60 Optic fiber connector FC/APCSC/APC or E-2000RF featureWork bandwidthMHz45-862 Input leveldBmV18~28AGCFlatnessdB≤±0.7545~862MHzReturn lossdB>1645~750MHzInput impedanceΩ75 Link featureTransmit channel PAL-D/60ch CNRdB≥5110Km optic fiber,0dBm receiveCTBdB≤-65 CSOdB≤-60  General featureNetwork interface port RJ45, R232Support I.E. & SNMPPower supplyV90~265 city power-48VDC optionalPower ConsumeW≤50Single power worksWork temp.°C-5~65Machine temp controlled automaticallyStorage temp.°C-40~85 Work relative temp.%5~95 Size"19×10×1.75WxDxH-------------------------------------------------------------------- FAQ1. What are the payment terms that you support? Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you. 2. What about the lead time? Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends. 3. How about the shipping? When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment. 4. How can I place an order? (1) Negotiation is agreed for the product price and specifications. (2) Proforma invoice will be sent for confirmation. (3) After the agreement on the proforma invoice, the customer makes the deposit. (4) Manufacturing will be started as soon as the payment is confirmed by our bank. (5) Ship out the goods within the agreed delivery deadline. 5. Can you do OEM for us? Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you. 6. How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
