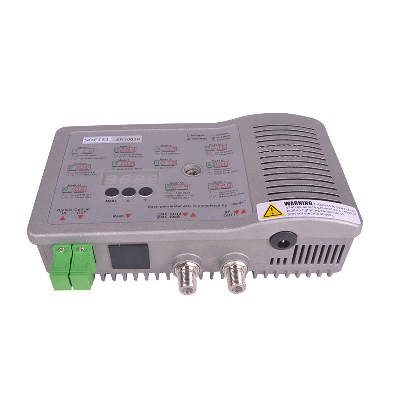

5-862MHz Bi-Directional FTTH Optical Receiver

Bi-directional 5-1000MHz Mini Optical RFOG Node SR1001RFOG-ONU optical receiver is our home use product that is specially developed for FTTHnetwork structure. The return path adopts burst mode RFOG (turn on the laser when have return signal), which greatly reduced the noise collection. 1. Excellent AGC characteristic, when the input optical power range is -7~+2dBm, the output level, CTB and CSO basically unchanged. 2. Professional RF attenuator circuit, with good attenuation linear and high precision. 3. GaAs amplifier device, with good index, low distortion and high reliability. 4. The return path control adopts burst mode, which greatly reduced the noise collection. 5. The shell adopts aluminum die casting, the heat dissipation effect is good and the appearance is exquisite. 6. The power supply mode is external DC +12V. 1. Forward path Optical AGC control range: -7~+2 dBmC/N:≥ 51dB (Note1)Operating frequency: 45/87 ~ 862/1003MHzC/CTB:≥ 68dB (Note1)Flatness in band: ±0.75dBC/CSO:≥ 65dB (Note1)Rated output level: ≥ 92dBμVMaximum output level: ≥ 92dBμV2. Return path Output optical wavelength: 1310±10nm (or specified by the user)Output optical power: 1 mW (or specified by the user)Operating frequency: 5 ~ 65MHz (or specified by the user)Link flatness: ±1.5 dBInput level range: 75 ~ 85dBμVInput return loss: ≥16dBNPR dynamic range: ≥10dB (FP laser, NPR≥30 dB); ≥15dB (DFB laser, NPR≥30 dB)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
