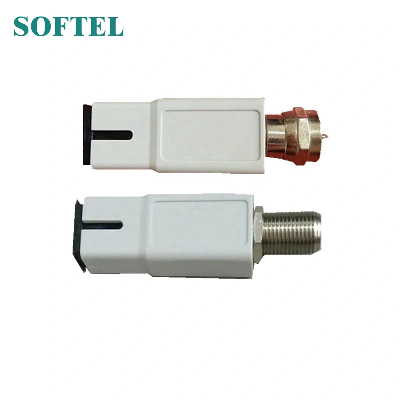

Competitive Price FTTH CATV Optical Receiver Node Mini Without Power

Competitive price FTTH CATV Optical Receiver Node Mini without power1.0 BRIEF INTRODUCTIONSR100 series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:     1. SR100: CATV operating wavelength 1260~1620nm.      2. SR100/WF: Built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.2.0 PRODUCT DISPLAY3.0  PRODUCT FEATURE1. No Power required2. Work bandwidth 45~1050MHz3. Output Level=68dBμV (Pin=-1dBm)4.0 MAIN APPLICATION1. CATV FTTH 2. Integration of three networks3. FTTH PON5.0 TEST DATA 6.0 TECHNICAL INDEX  Optic featureOptic featureUnitIndexSupplementCATV Work wavelength(nm)1260~1620SR1001540~1563SR100/WFChannel Isolation(dB)≥401550nm&1490nmResposibitity(A/W)≥0.851310nm≥0.91550nmReceiving power(dBm)+2~-14 Optical return loss(dB)≥55 Optical fiber connector SC/APCSR100-SC FC/APCSR100-FCRF FeatureWork bandwidth(MHz)45~1050MHz Output level(dBμV)>68Digital TV (Pin=-1dBm)Return loss(dB)≥1447~862MHzOutput impedance(Ω)75 Output port number 1 RF tie-in F-Female DigitalTV eatureOMI(%)4.3 MER(dB)≥38Pin=-1dBM≥30Pin=-13dBmBER
