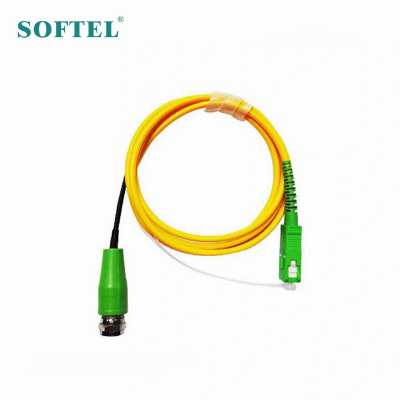

1GHz FTTH Mini Passive Optical Node CATV Receiver

 SR100FSR100F-WDSR1001. PRODUCT DESCRIPTIONSR100 series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:SR100, SR100F: CATV operating wavelength 1260~1620nm.SR100-WD: Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON.SR100-WF, SR100F-WF: built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV operating wavelength 1550nm. 2. PRODUCT FEATURE1.No Power required2.Work bandwidth 45~1050MHz3.Output Level=68dBμV (Pin=-1dBm) 3. MAIN APPLICATIONCATV FTTHIntegration of three networksFTTH PON 4.TECHNICAL INDEX Optic featureUnitIndexSupplementOptical parameterCATV work wavelengthnm1260~1620SR100,SR100F1540~1563SR100-WF,SR100F-WF,SR100-WDPass wavelengthnm1310~1490SR100-WDChannel Isolation dB≥401550nm&1490nmResponseA/W≥0.851310nm ≥0.91550nmReceiving PowerdBm+2~-14 Optical return lossdB≥55 Optical fiber connector SC/APC RF parameter  Work bandwidth MHz45~1050 Output leveldBμV>68Digital TV (pin=-1dBm)Return lossdB≥1447~862MHz Output impedanceΩ75 Output port number 1 RF tie-in F-female General featureWork tempºC-20~+55 Storage tempºC-40~+85 Work relative tempºC5~95  5.PRODUCT  SERIESModelInput wavelengthCATV operatingData passOutput fiberInput fiberSR100,SR100F1310nm or 1550nm1260~1620nm-SC/APC-SR100-WF,SR100F-WF1310,1490/1550nm1540~1563nm-SC/APC-SR100-WD1310/1490nmSC/APCSC/UPC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
