2021 CATV FTTH Mini Fiber Active Passive Node Optical Receiver with Wdm

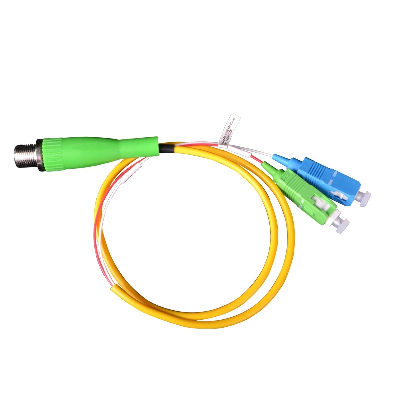

Softel Patchcord Type FTTH Passive Optical Node 1. PRODUCT DESCRIPTIONSR100 series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:SR100, SR100F: CATV operating wavelength 1260~1620nm.SR100-WD: Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON.SR100-WF, SR100F-WF: built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV operating wavelength 1550nm. 2. PRODUCT FEATURE1.No Power required2.Work bandwidth 45~1050MHz3.Output Level=68dBμV (Pin=-1dBm) 3. MAIN APPLICATIONCATV FTTHIntegration of three networksFTTH PON 4.TECHNICAL INDEX Optic featureUnitIndexSupplementOptical parameterCATV work wavelengthnm1260~1620SR100,SR100F1540~1563SR100-WF,SR100F-WF,SR100-WDPass wavelengthnm1310~1490SR100-WDChannel Isolation dB≥401550nm&1490nmResponseA/W≥0.851310nm ≥0.91550nmReceiving PowerdBm+2~-14 Optical return lossdB≥55 Optical fiber connector SC/APC RF parameter  Work bandwidth MHz45~1050 Output leveldBμV>68Digital TV (pin=-1dBm)Return lossdB≥1447~862MHz Output impedanceΩ75 Output port number 1 RF tie-in F-female General featureWork tempºC-20~+55 Storage tempºC-40~+85 Work relative tempºC5~95  5.PRODUCT  SERIESModelInput wavelengthCATV operatingData passOutput fiberInput fiberSR100,SR100F1310nm or 1550nm1260~1620nm-SC/APC-SR100-WF, SR100F-WF1310,1490/1550nm1540~1563nm-SC/APC-SR100-WD1310/1490nmSC/APCSC/UPCFAQ 1. What are the payment terms that you support? Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you. 2. What about the lead time? Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends. 3. How about the shipping? When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment. 4. How can I place an order? (1) Negotiation is agreed upon for the product price and specifications. (2) Proforma invoice will be sent for confirmation. (3) After the agreement on the proforma invoice, the customer makes the deposit. (4) Manufacturing will be started as soon as the payment is confirmed by our bank. (5) Ship out the goods within the agreed delivery deadline. 5. Can you do OEM for us? Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you. 6. How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
