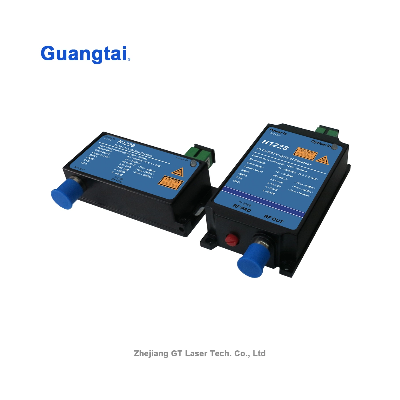

Guangtai 47~1200MHz FTTH CATV Optical Fiber Receiver H1228

Product DescriptionH1228, the operating bandwidth of 47~ 1200MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television. Products with high sensitivity optical receiver tube and Huatai special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so H1228 within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics.H1228 for Analog TV, in Pin =-10dBm when, Vo≥ 75.7dBμV, CNR≥ 45.3dB.H1228 for Digital TV, in Pin =-16dBm when, Vo≥ 67.2dBμV, MER≥ 36.1dB.H1228 for Digital TV, in Pin =-20dBm when, Vo≥ 58.8dBμV, MER≥ 30dB.Triple play, fiber to the home, using theH1228 can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network.Product Features1. Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB)2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB3. Applicable GPON, EPON, compatible with any FTTx PON technology4. Can save a large number of optical power resource, greatly reduce the network configuration cost5. Within 47~1200MHz bandwidth, all with excellent flatness feature ( FL≤±1.0dB )6. Metal case, offer safeguard for optoelectronic sensitive devices7. High output level, can be used by many users8. Low power consume, high performance, high cost performanceMain Application1. CATV FTTH2. Integration of three networks3. FTTH PONTechnical IndexPerformanceIndexSupplementOpticfeatureCATV work wavelength(nm)1260~1620H1228 ( A -Type )1540~1563H1228/WF,H1228/WD  ( A & B Type )Pass wavelength(nm)1310, 1490H1228/WD ( BType )Channel Isolation(dB)≥401550 &1490nmResponsivity(A/W)≥0.851310nm ≥0.91550nm Receiving power(dBm)+2 ~ -10Analog TV (CNR>45dB)+2 ~ -20Digital TV (MER>30dB)Optical return loss(dB)≥55 ptical fiber connector SC/APCH1228, H1228/WFLC/APCH1228/WD  RFfeatureWork bandwidth(MHz)47~1200 Flatness(dB)≤±1.047~1200MHz Output level(dBμV)>88Analog TV (Pin=-4dBm)>88Digital TV (Pin=-5dBm)Output level adjust(dB)0 ~ 18MGCReturn loss(dB)≥1447 ~ 862MHzOutput impedance(Ω)75 Output port number 1 RF tie-in F-FemaleF-male optionalAnalog TV Link featureTest channel(CH)59CH(PAL-D)NTSS/80CHOMI(%)3.8 CNR1(dB)53.3Pin=-2dBmCNR2(dB)45.3Pin=-10dBmCTB(dB)≤-63Pin:0~-10dBmCSO(dB)≤-60Pin:0~-10dBmDigital TVLink featureOMI(%)4.3 MER(dB)≥36Pin = -16.0dBm≥30Pin = -20.0dBmBER(dB)
