Factory Custom PLC Fiber Splitter FTTH CATV Network

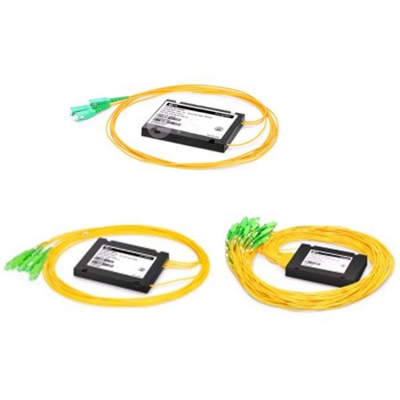

  Product DescriptionABS Box type PLC Fiber Splitter1x(2,4...128) or 2x(2,4...128) (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen)FeaturesTelcordia GR-1209-CORE-2001Telcordia GR-1221-CORE-1999YD/T 2000.1-2009RoHSProduct Parameters               PARAMETERS1×21×41×81×161×321×641×128Wavelength (nm)1260~1650Fiber typeG657A 1or custom-definedPigtail length(m)1.0(±0.1) or custom-definedInsertion loss (dB)≤3.8≤7.2≤10.3≤13.6≤16.9≤20.4≤23.5Loss uniformity(dB)max≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤2.0Return loss (dB)minimum55555555555555PDL (dB)max≤0.2≤0.2≤0.3≤0.3≤0.4≤0.4≤0.4Directivityminimum≥55Wavelength related loss(dB)max≤0.6≤0.6≤0.6≤0.8≤1.0≤1.0≤1.2Working temp. ( ºC)-40~85Store temp. ( ºC)-40~85bare fiber40×4×450×7×460×12×4120*26*10ABS package size(LxWxH)mm100×80×10120×80×18140×115×18150*130*25Mini package size(Lx W x H)mm55×7×460×12×480×20×6100×40×6120*50*122X N(N≥2)               PARAMETERS2×22×42×82×162×322×642×128Wavelength (nm)1260~1650Fiber typeG657A 2 or custom-definedPigtail length(m)1.0(±0.1) or custom-definedInsertion loss (dB)≤4.2≤7.5≤10.6≤13.9≤17.2≤20.8≤23.8Loss uniformity(dB)max≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤2.0Return loss (dB)minimum55555555555555PDL (dB)max≤0.2≤0.2≤0.3≤0.3≤0.4≤0.4≤0.4Directivityminimum≥55Wavelength related loss(dB)max≤0.6≤0.6≤0.6≤0.8≤1.0≤1.0≤1.2Working temp. ( ºC)-40~85Store temp. ( ºC)-40~85bare fiber50×4×450×7×460×12×4120*26*10ABS package size(LxWxH)mm100×80×10120×80×18140×115×18150*130*25Mini package size(LxWxH)mm60×7×460×12×480×20×6100×40×6120*50*12Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB lossApplicationFTTH (Fiber to the home)Access/PON distributionCATV NETWORKHigh reliability/Monitoring/other Network systemsBest Alternative for FTTx Solution:Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses. Our AdvantagesRelated Products Our Strength  FRQ/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
