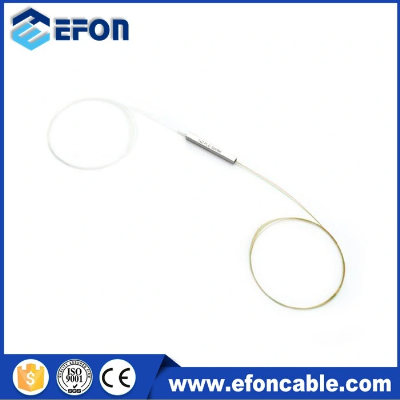

Manufacture Supply CATV 1*2 Ribbon Fiber Splitter, PLC Optical Fiber Splitter

Manufacture supply catv 1*2 ribbon fiber splitter, PLC optical fiber splitterProduct DescriptionOverview    This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.Application for FTTXnetwork, LAN/WAN or CATV network.FeaturesLow Insertion lossLow PDLCompact DesignGood channel-to-channel uniformityWide Operating Wavelength: From 1260nm to 1650nmWide Operating Temperature: From -40ºCto 85ºCHigh Reliability and Stability Specification:Wavelength(nm)  1260-1650 Parameters 1×2 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32 Insertion Loss(with connector)(dB) ≤4.2 ≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤17.7 Insertion Loss(W/O connector)(dB) ≤4.0 ≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤18.2 Uniformity (dB) ≤0.4 ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7 PDL(dB) ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4 Return Loss(dB)  >50 Directivity(dB)  >55 Temperature Range (ºC)  -40~+75 Storage Temperature(ºC)  -40~+85 Packing infomationA.Transparent plastic box(As default)B.Standalone carton boxC.Economical packing -- One carton box contains several items    EFONCABLE  provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you likec. The length of pigtail can be also customized; usually we will provide you 1.5m.     FAQ  Payment For large orders, T/T , L/C, and E-credit lines are all offered.For small orders, credit-cards are accepted.  Shipping & Delivery We will send the products within 10 days.We ship small batched by air, or large orders by container.  Return and Warranty All products have been tested before ship outAll products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
