Digital Analog Video TV Broadcast Mobile Digital Receiver with Asi Input Output

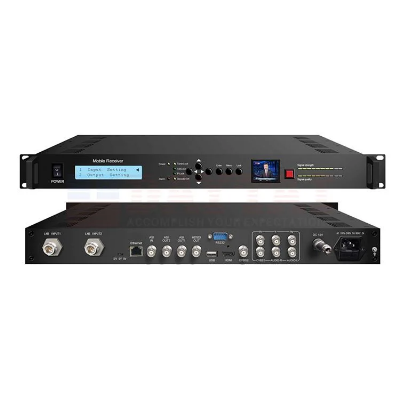

★Description  ★Digital Receiver   DAYTAI Mobile Digital Receiver,(DT-DR-MO) is a professional mobile digital receiver to convert the input tuner signals to crystal clear digital or analog video in various formats available at CVBS, YPbPr, HDMI, and HD-SDI. It is designed to support the industry standard 576i/480i, 576p/480p, 720p and 1080i decoding.It is also equipped with 1 ASI input and 2 ASI output ports to make it possible to process more programs. Additionally, the implemented web server allows theconfiguration of the DT-R-4098HI/HIA with a standard web browser. Basic configuration can also be done locally with the LCD display and navigation buttons. The LCD monitor can, at the same time, realize the real-time observation about broadcasting status.   ★Features⊙Easy operation⊙Applicable to all STBs⊙Learn max 10 keys on remote control⊙Add 5 sending intervals to adapt the infrared reflect speed of STB⊙Support learn type on remote control : Channel, volume, menu and all the keys on remote control   Input Parameters Tuner in Signal source 2*LNB, N-L16 (negative)   Receiving frequency 30MHz~900MHz   Bandwidth 2MHz, 4MHz, 6MHz, 8MHz   Input impedance 50Ω   Receiving restriction 20dμBv~103dBμv   Demodulation mode COFDM/DVB-T Transport Stream in ASI input 1*ASI, BNC (negative)   IP input (only for DR-2098HIA) UDP Unicast/Multicast (100M, RJ45) Output Parameters Stream out Video output port 1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI   Audio output L/R channel (unbalanced); XLR (balanced)   ASI output 2*ASI, BNC (negative)   IP output (only for DR-2098HIA) UDP/ Unicast/Multicast (100M, RJ45) Resolution HDMI 1080i@25, 29.94fps, 720p @ 50 59.94fps, 576i@25 fps, 480i@29.94 fps   CVBS 576i@25 fps, 480i@29.94fps   YPbPr 1080i@ 25, 29.94fps,720p@50, 59.94fps   HD-SDI 1080i@25, 29.94fps,720p@50, 59.94fps, 576i@25 fps, 480i@29.94 fps Data Formatting MPEG-2, H.264 BER ≤10-8 Miscellaneous Management Web NMS via Ethernet; LCD & Key board Upgrade External USB driver MTBF ≥10000hrs Working voltage DC 10V~16V; AC 90V~250V Feed voltage DC 10V~16V Power dissipation 12W Dimension 19″1U, 483×400×44(mm) Weight 3.5Kg   ★PicturesOur advantages* As a world class manufacturer we can ensure you are getting world class quality at a competitive price. * We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices. * We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer. Customer first, service foremost If you have any other questions, please feel free to contact me. I will reply you at my first time. Thank you for visiting our products, have a good day:)     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
