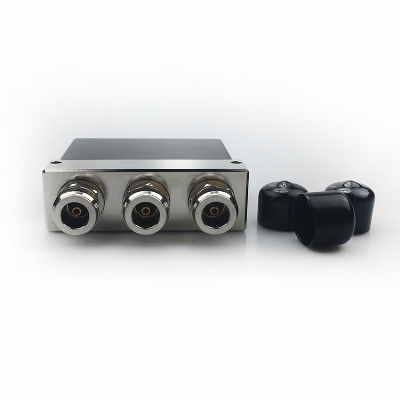

RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch

SPDT_N Series N type single pole double throw radio frequency electromechanical switchSPDT RF coaxial electromechanical switches with RF interface type N connector have excellent reliability, high performance.It can switch one signal from the common port to one of the other two output ports, working from DC to 12.4GHz. Widely used in RF measurement, testing, broadband wireless communications, and automated test equipment.  Model selectionConnectors Frequency Type N: type N Female 3: up to 3GHz 1:Failsafe6: up to 6GHz 2: Latching 12:up to 12.4GHz    Actuator Voltage TTL Options Options 2: 12V 0: without TTL 0: Solder pins 3: 24V 1: with TTL(high level) 1: 9 pin D-sub Connector       Electrical properties Connector FrequencyVSWRInsertion lossIsolationImpedance(GHz) (max) (max)dB (min)dB (Ω) N DC~1 1.100.1085501~2 1.150.15802~3 1.250.20753~6 1.350.40706~12.41.500.5060   General specificationGeneral specificationTLL inputHigh level2.5 to 5.5 Volts Low level0 to 0.8 Volts Switching time(maximum)ms 20Working temperature-400C~+850C Storage temperature -550C~+850C Life span3.5 million times  Package and Shipment Details:1) Neutral Master Carton Package;2) Customized Package; Product Equipment Line:Quality Controls:With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.  All our products have CE certificate and some have obtained patent.About usShenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world . FAQ(Frequent Asked Qestions)Q: What RF switch configurations are available?A: Below are our popular configurations for your reference, besides, we accept customization.Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12TSolid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16TQ: What control options are available?A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.Q: Are the RF switch attenuators bi-directional?A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.You're welcomed to contact us for any questions./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
