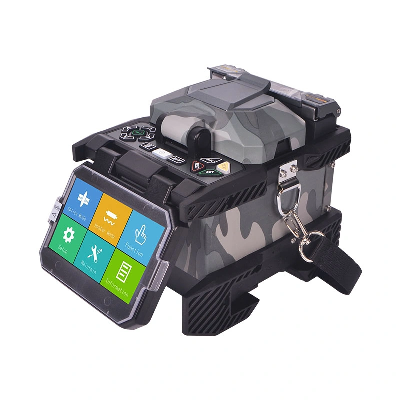

New Arrival Low Cost AV6481 Optical Fiber Fusion Splicer

New Arrival Low-Cost Optical Fiber Fusion Splicer  -Brief IntroIts powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX: Because of the compact configuration and precise mechanism, it can adapt to the execrable environment; The novel fiber imaging system make the image clearer and exquisites; The real-time embedded OS provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved. -Characteristic1. The world's smallest dual observation, tune core type welding machine 2.Weighing only 1.25 kg 3.3.5-inch color display, while observing the X-axis, Y-axis direction of the optical fiber 4.Optical magnification large, clearly visible core 5.Multiple core alignment method: core alignment cladding alignment manually aligned 6.Welding time 9 seconds 30 seconds of heating time 7.The rich user interface, internal resistance, intelligent menu design 8. Furrow type wind cover, 15m / s under strong wind can carry splice 9. 5000 meters of altitude dial, weld quality assurance plateau 10. Typically, the cycle of operation 300   Applicable fibers     SM  MM  DS  NZDSFiber diameterCladding diameter:80-150μm;Coating diameter:100-1000μmFiber aligning method  MeticulousCoreCladManualActual average splice loss0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)Typical splicing time   Typical 9 sec (standard SM fiber)Tube typical heating timeTypical 30 secStorage of splice result4000 results, 20 parameter per result          Fiber image magnification200X (X or Y view),50X  (X and Y view)     Battery capacityTypical 300 cycles (splice/tube heat with inner Li-battery)Monitor3.5 inch TFT color LCD monitorPower supply    AC 100-240V with AC adapter  inner Li-battery (5200mAH)Dimension 25mm(L)×105mm(W)×113mm(H)Fiber cleaved length8-16mm (Coating diameter:250μm)Fiber countSingleReturn loss>60dBSplicing modeAuto Calibrate Normal SpecialSplicing program53 (templet), 40(user)Protection sleeve length60mm, 40mm Tube heating program       9 (templet),24(user)Tension test2NElectrode life     2500Terminal     USB Operating condition   0-5000m above sea level, -10-50°Max wind velocity of 15m/sWeight    1.55Kg including batteryFunctionKL-280GKL-280KL-300TKL-500Display fiber cleaved angle    --√√Display fiber offset angle      --√√Display core offset                 --√√Display clad offset      --√√Splicing mode (Auto, Calibrate ,Normal ,Special)√-√√Fiber aligning method (Core,Clad,Manual)√-√√Arc strength automatic adjustment√-√√Image turn over-√√√Fiber angle limit--√√Display inside temperature       --√√Display ambient temperature   --√√Display heater temperature      --√√Display air pressure        --√√Display battery voltage      --√√Taper splice             --√√Sleep                --√√Auto shut down           --√√Software upgrade via USB interface√-√√FAQ 1. What are the payment terms that you support? Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you. 2. What about the lead time? Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends. 3. How about the shipping? When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment. 4. How can I place an order? (1) Negotiation is agreed for the product price and specifications. (2) Proforma invoice will be sent for confirmation. (3) After the agreement on the proforma invoice, the customer makes the deposit. (4) Manufacturing will be started as soon as the payment is confirmed by our bank. (5) Ship out the goods within the agreed delivery deadline. 5. Can you do OEM for us? Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you. 6. How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
