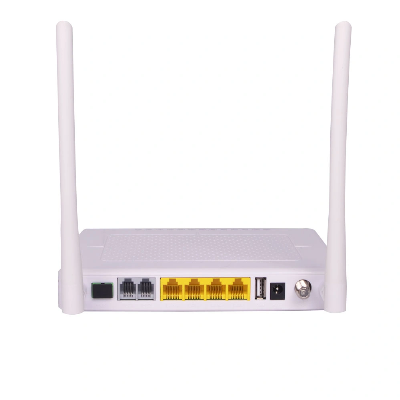

Ont-4GF-2V-Rfw Single Fiber Gpon Ont

ONT-4GF-2V-RFW Single Fiber GPON ONTGPON ONT/HGU is designed for FTTH and networking service providers. ONT-  4GF-WF is developed by SOFTEL based on the Gigabit GPON technology, hasa high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.  Functional FeatureØ Full compatible with ITU-T G.984 Ø Support four GE auto-adapting Ethernet portsØ Support one CATV outputØ Support one 802.11 n/b/g WiFi portØ Support OMCI and TR069 for remote managementØ Support Web for local managementØ Support Auto-negotiation and MDI/MDIX Ø Support the Ethernet interface rate, working mode and flows controlØ Support loopback at UNIØ Support packet filtering and anti-illegal message attack protectionØ Support performance statistics of Ethernet linesØ Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.Ø Support DHCP Option60 reporting the location information of the Ethernet interface Datasheet.ItemParameterInterfaceUplink Interface1*GPON port, FSAN G.984.2 standard, Class B+Downstream Data Rate: 2.488GbpsUpstream Data Rate: 1.244GbpsSC/PC single mode fiber28dB Link loss and 30KM distance with 1:128CATV Interface1 RF outputFemale F-Type ConnectorPOTS Port2 *RJ11 with 3RENMax 1km distanceBalanced Ring, 55V RMSEthernet Interface1*10/100/1000M and 3*10/100auto-negotiationFull/half duplex modeRJ45 connectorAuto MDI/MDI-X100m distancePower Interface12V DC Power supplyPerformanceParametersPON Optical ParameterWavelength: Tx 1310nm, Rx1490nmTx Optical Power: -1~4dBmRx Sensitivity: -27dBmSaturation Optical Power: -3dBmConnector Type: SCOptical Fiber: 9/125μm single-mode fiberData TransmissionParameterPON Throughput: Downstream 2.488Gbit/s s; Upstream1.244Gbit/sEthernet: 100Mbps or 1000MbpsPacket Loss Ratio: 46dB,CSO: >58dBc,CTB: >58dBcRF output return loss: >14dBRF impedance: 75OhmBusiness CapabilityLayer 2 wire speed switchingSupport VLAN TAG/UNTAG,VLAN conversionSupport Port-based speed limitationSupport Priority classificationSupport storm control of broadcastSupport link detectionNetworkManagementManagement ModeStandard compliant OMCI interface as defined by ITU-TG.984.4Support TR069 and WEB managementManagement FunctionStatus monitor, Configuration management, Alarmmanagement, Log managementPhysical FeaturesShellPlastic casingPowerExternal 12VDC/1A power supply adapterPower consumption:
