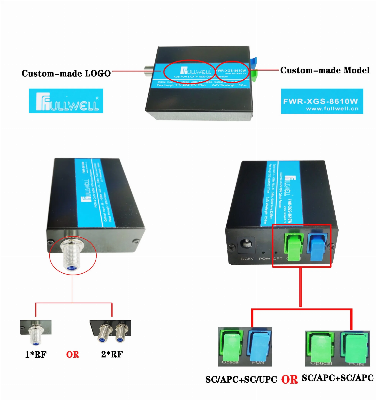

Fwr-Xgs-8610W 10g Xgs Pon CATV Mini Node

XG(S)-PON & CATV FTTH Optical ReceiverProduct DescriptionFiber to the home ( FTTH ) broadband access is the ultimate development goal, FWR-XGS-8610W optical receiver is the target terminal product for this goal. FWR-XGS-8610W device adopts the technology of high isolation WDM in order to separate CATV and XGS-PON ONT signal. This device can be used together with Fullwell XGS-PON ONT FWXG-890SG. Furthermore, it also adopts low optical power receiving and RF-AGC control techniques, which could achieve the requirement of ≤-2dBm CATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the panel and it supports RF outputs constantly, the convenience for customer's use, which is the ideal receiver equipment for FTTH. Product Feature♦ FWR-XGS-8610W is the input interface of the optical signal, in optical access should clean APC TOP with alcohol, then align the adapter sunken mouth, and fiber mouth march link.♦ When optical signal accesses (≥-18dBm) then lights on in the panel, which shows the optical part is regularly working; Lights will be changed by receiving power as yellow(>+2dBm), green(+2~-18dBm) and red (
