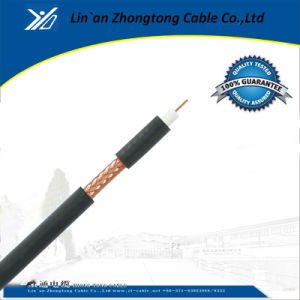

Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)

Basic Info.Model NO.coaxial cable RG59UTypeCATV EquipmentFunctionSignal Transmission EquipmentCertificationCE, ISO, RoHSConditionNewCable ConductorCCS/CuConductor Size0.81mmCable ColorBlack/WhiteApplicationBroadband CATV/VideoImpedance 75ohm TrademarkZHONGTONGSpecificationCE, ISO, ROHS, SGSOriginchinaHS Code8544200Product Description Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)Specifications:1) 0.81mmBC+ 3.7mmSolid PE +95% Bare Copper braiding +6.1mm PVC2) Customers' specifications are welcomed.Note:1) Center conductor: Tinned Copper, Bare Copper and Copper Clad Steel available;2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, And double non-bonded Al-foil are available;3) Braiding wire: AL, Bare Copper and Tinned Copper available;4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;5) Braiding net: 80, 96, 120, 128, 144 and more available;6) Braiding coverage: Between 80- 97% available;7) PVC jacket of Flame retardant, UV, or UL available.Characteristics:Impedance: 75+/-3 OhmVelocity of Propagation: 66%Capacitance: 67pF/mReturn Loss: 20dB minAttenuation: [@68 F. (20 C) ] dB/100meters5MHz4dB55MHz6.76dB211MHz12.93dB300MHz15.49dB400MHz17.98dB450MHz19.13dB550MHz21.23dB750MHz25dB870MHz27.03dB1000MHz29.1dBPacking:1) Packing Lengths:100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/rollOther lengths available according to client's request.2) Inner packing: Wooden reel, plastic reel, and paper reel available.3) Outer packing: Carton box, pull out box, pallet available.4) Other packing available according to client's request.Advantages:1. High quality, competitive prices and prompt delivery;2. CE/RoHS/ETL/ISO available;3. OEM and customize the cables as per your requestApplications:CATV community antenna televisionCCTV closed-circuit televisionDBS direct broadcasting satellite
