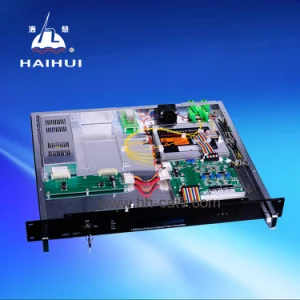

CATV 1550nm 16.5*4 Port Optical Fiber Amplifier

Basic Info.Model NO. EDFA TypeCATV EquipmentFunctionFiber AmplifierCondition New Pump BrandJdsuOperating Wavelength1540~1563nmInput Power-10~+10dBmPower SupplySingle or DualNoise Figure≤6.3dBWorking Temperature5-+65 Celsius DegreeTrademarkHAIHUITransport PackageCartonOriginChinaHS Code8517629900Product Description1550nm Erbium Doped Fiber Amplifier• 1540~1563nm operating bandwidth• Low noise, high output, high reliability• APC,ACC,ATC controlled selection(HA5100/P)• Powerful RS232 supervisory instruction• Three exterior option: 1U (19" stander), 3D (12.4", 3U, Desk-type) and modulator• 1U and 3D exterior, offering status appearance and diagnosing fault with LCD, standard RS232 communication interface, SNMP network management function• Application of 3D models to adapt to laboratory• Excellent P/P ratio in areaTechnique indexPerformanceIndexSupplementMin.Typ.Max.Optical featureOperating wavelength range(nm)1540 1563CATVInput power(dBm)-10+3+10 Maximum output power1)(dBm)+10 +26Pin=0dBmOutput power adjustable range(dBm)-6 0HA5100/PNumber of output ports 1 8SC/APC1 16LC/APCDifference of each output power(dBm)-0.5 +0.5 Noise figure (Pin=0dBm)(dB)  6.3HA5100-26Polarization dependence loss (dB)  0.3 Polarization dependence gain (dB)  0.4 Polarization mode dispersion (ps)  0.5 Input/output isolation(dB)30   Pump power leakage(dBm)  -30 Echo loss(dB)55  APCGeneral featureSNMP network management interface RJ45 Serial interface RS232 Power supply(V)90 265220VAC30 72-48VDC23 25+24VDCPower consume(W)  50 Operating temp.(°C)-5 65 Storage temp.(°C)-40 80 Operating relative humidity(%)5 95 Size  (W)×(D)×(H)(")19×14.5×1.751RU (19")(")12.4×15.4×5.253D (12.4", desk-type)(mm)150×125×22ModulatorRemark: Output power can be customized by user
