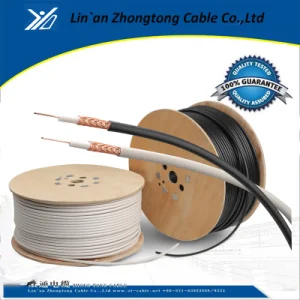

Good Quality and Competitive Price Low Loss Coaxial Cable Rg11

Basic Info.Model NO. coaxial cable TypeCATV EquipmentFunctionSignal Transmitting DeviceCertificationCE, ISO, RoHSConditionNewCable ColorBlackConductorCCS/CuConductor Size1.63mmCable Packing305mBraidingAl-Mg WireDrop Cable ApplicationBroadband CATV/VideoImpedance 75ohm Number of Conductors1SpecificationCE, ISO, ROHS, SGSOriginChinaHS Code8544200Product Description Coaxial Cable for CATV and Satellite (RG6U-F660BV):A. Feature:Low loss, high frequency, easy installation, UL approved, Foxtel approved. Widely used in satellite, CATV network.B. Construction:- Inner conductor: 1.02mmCCS / Bare copper- Insulation: 4.57mm Foam Polyethylene- Shield: Aluminum, Tinned, Bare Copper braiding- Jacket: FR-PVC, UV rated for Sunlight resistance or PE compound or LSZH sheath- Messenger: With or without 1.3steel wire messengerC. Model list:F660BV, F690BV, F660BVM, F690BVM, F660BE, F690BE, F6TSV, F6TSE, flooded Apd jelly items.D. Packing:305m/wooden drum, 100meter/roll, Pull easy boxE. Application:Widely used in satellite, CATV networkGood quality and competitive price low loss coaxial cable rg11SpecificaitonsPhysical dimensionscomponentStandard-shieldTri-shieldQuad-shieldInchsmminchsmminchsmmNominal center conductor diameter0.0641.630.0641.630.0641.63Nominal diameter over dielectric0.2807.110.287.110.287.11Nominal diameter over first shield0.2877.290.2877.290.2877.29Nominal diameter over jacket0.39510.030.39510.030.40510.29Nominal jacket wall thickness0.0421.070.0390.990.0370.94Nominal diameter of steel messenger0.072(single)  1.830.072(single)1.830.072(single)1.830.109(dual)2.770.109(dual)2.770.109(dual)2.77Attenuation(20°C)Frequency(MHz)Maximum(dB/100ft)Maximum(dB/100m)550.963.152111.906.233502.427.944502.759.025503.049.977503.6511.978653.9813.0510004.3514.27
