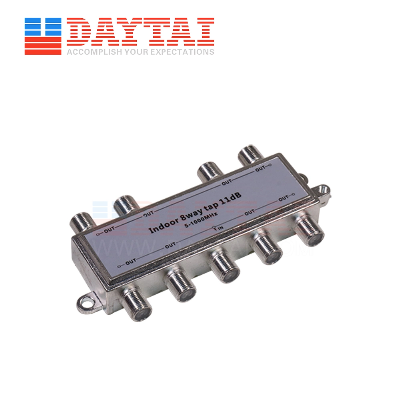

5~1000MHz Indoor 8 Way CATV Cable Tap

5~1000MHz Indoor 8 way CATV Cable Tap★Picture★Description 8 Way CATV  tap, 06dB,08dB,10dB,12 dB,14dB,16dB,18dB,20dB,22dB,24dB,28dB 5-1000MHz, RFI>110dB, all ports DC blocked.★Features⊙5~1000MHz Bandwidth,120dB EMI.⊙Low insertion losss, High return loss and isolation⊙Zinealloy die-cast housing, tin or nickel plated.⊙Solder back housings, machine threaded, flat F-ports, 75Ohm.⊙Capacitor at all ports provides effective DC voltage blocking.⊙Compliant with SCTE splitter guidelines.⊙CE&ROHS Certified.                                               ★Electrical Performance                                                                                                            4  WAY TAP  ITEM  PARAMETER  Tap Loss      (dB)       Value   Inaccuracy  10  12  14  16  18  20  22  24     5-10MHz   ±0.5    9.5  11.5  13.5  15.5  17.5  19.5  22.0  23.5    11-65MHz   ±0.5  10.2  11.8  14.2  15.9  17.9  20.5  22.0  24.0   50-750MHz  ±1.0  10.5  12.2  14.5  16.4  18.0  20.5  22.4  24.4  750-1000MHz  ±1.0  10.5  12.5  14.5  16.5  18.5  20.5  22.4  24.5  Insertion Loss (dB)         5-10 MHz   ≤3.7  ≤3.7  ≤2.6  ≤1.7  ≤1.3  ≤1.0  ≤1.0  ≤0.9        11-65 MHz   ≤3.6  ≤3.6  ≤2.5  ≤1.6  ≤1.3  ≤1.0  ≤0.9  ≤0.7       50-750 MHz   ≤3.9  ≤3.9  ≤2.7  ≤1.7  ≤1.6  ≤1.2  ≤1.2  ≤0.8       750-1000 MHz  ≤4.0  ≤4.0  ≤3.1  ≤2.5  ≤1.8  ≤1.6  ≤1.2  ≤1.0  Reverse Isolation (dB)        5-10  MHz   ≥26  ≥28  ≥28  ≥28  ≥30  ≥32  ≥34  ≥36       11-65 MHz   ≥28  ≥30  ≥30  ≥30  ≥32  ≥32  ≥32  ≥32       50-750 MHz   ≥26  ≥26  ≥28  ≥30  ≥30  ≥30  ≥30  ≥30     750-1000 MHz  ≥26  ≥26  ≥26  ≥28  ≥28  ≥28  ≥28  ≥28  Mutual  Isolation (dB)        5-10 MHz   ≥25  ≥25  ≥25  ≥25  ≥25  ≥25  ≥25  ≥25       11-65 MHz   ≥26  ≥26  ≥26  ≥26  ≥26  ≥26  ≥26  ≥26      50-750 MHz   ≥26  ≥26  ≥26  ≥26  ≥26  ≥26  ≥26  ≥26    750-1000 MHz  ≥25  ≥25  ≥25  ≥25  ≥25  ≥25  ≥25  ≥25  Return Loss (dB)        5-10 MHz   ≥18  ≥18  ≥18  ≥18  ≥18  ≥18  ≥18  ≥18       11-65 MHz   ≥20  ≥20  ≥20  ≥20  ≥20  ≥20  ≥20  ≥20      50-750 MHz   ≥20  ≥20  ≥20  ≥20  ≥20  ≥20  ≥20  ≥20    750-1000 MHz  ≥18  ≥18  ≥18  ≥18  ≥18  ≥18  ≥18  ≥18     Impedance         5-1000Mhz  75Ω    Shield Decay         5-1000Mhz  ≥100dB                                                 ★Our Products  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
